Rear Lid Tail Lamp Bulbs

Rear Lid Tail Lamp Bulbs

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the tail lamps. Refer to => [ Tail Lamps Rear Lid ] Tail Lamps Rear Lid.

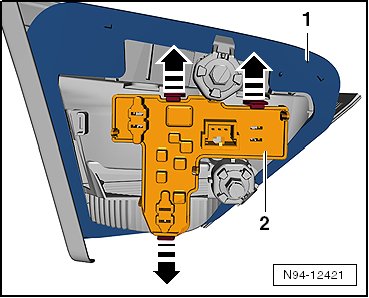

- Release the tabs in - direction of arrow - and remove the bulb holder - 2 - from the tail lamp - 1 -.

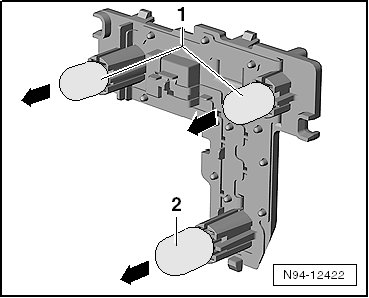

- Remove the tail lamp bulb - 1 - and backup lamp bulb - 2 - from the bulb socket in - direction of arrow -.






Installing

Install in reverse order of removal.
