Rear Lid Tail Lamps Overview

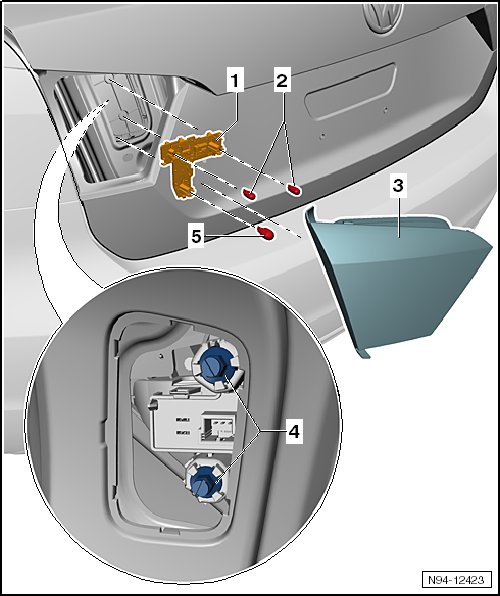

Rear Lid Tail Lamps Overview






1 Bulb Holder

2 Left Tail Lamp Bulb 2 (M49) and Right Tail Lamp Bulb 2 (M50)

• 12V, W5W, quantity: 2

• Removing and installing, refer to => [ Rear Lid Tail Lamp Bulbs ] Rear Lid Tail Lamp Bulbs.

3 Tail Lamp Housing

• Removing and installing, refer to => [ Tail Lamps Rear Lid ] Tail Lamps Rear Lid.

4 Screws

• 3.5 Nm

5 Left Back-Up Light (M16) and Right Back-Up Light (M17)

• 12V, W16W

• Removing and installing, refer to => [ Rear Lid Tail Lamp Bulbs ] Rear Lid Tail Lamp Bulbs.
