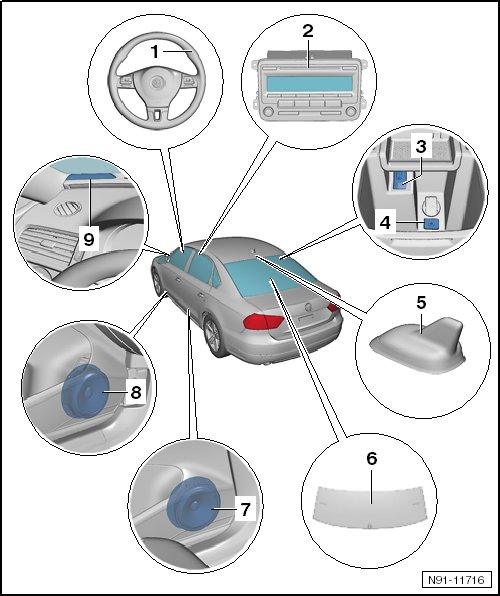

RCD 310 Overview






RCD 310 Overview






1 Multifunction Steering Wheel

Additional information can be found in => [ Multifunction Steering Wheel Overview ] Multifunction Steering Wheel Overview.

2 Radio (R)

RCD 310

Removing and installing, refer to => [ Radio/Navigation Systems ] Radio/Navigation Systems.

Connector overview, refer to => [ RCD 310 Connectors ] RCD 310 Connectors.

Anti-theft coding, refer to => [ Anti-Theft Coding ] RCD 310 Sound System

3 External Multimedia Device Interface (R215)

Depending on the vehicle equipment level

Installed inside the center console

Additional information can be found in => [ External Multimedia Device Interface (R215) ] External Multimedia Device Interface (R215).

4 External Audio Source Connection (R199)

Installed inside the center console

Additional information can be found in => [ External Audio Source Connection (R199) ] External Audio Source Connection (R199).

5 Roof Antenna (RX5)

With satellite tuner antenna (R172) (depending on the vehicle equipment level)

Located on the roof at the back of the vehicle

The antenna is technically matched to the vehicle equipment level

Additional information can be found in => [ Antenna System Component Location Overview ] Antenna System Component Location Overview.

6 Heated Rear Window (Z1)

With antenna (R11) and radio antenna 2 (R93)

For radio reception with diversity function

Additional information can be found in => [ Antenna System Component Location Overview ] Antenna System Component Location Overview.

7 Left Rear Bass Speaker (R15) And Right Rear Bass Speaker (R17)

Installed inside the left and right rear doors

Additional information can be found in => [ Speakers ] Speakers.

8 Left Front Bass Speaker (R21) And Right Front Bass Speaker (R23)

Installed inside the left and right front doors

Additional information can be found in => [ Speakers ] Speakers.

9 Left Front Treble Speaker (R20) And Right Front Treble Speaker (R22)

Installed inside the front of the instrument panel on the left and right sides

Additional information can be found in => [ Speakers ] Speakers.
