Steering Column Combination Switch (E595), Valeo

Steering Column Combination Switch (E595), Valeo


The removal and installation of individual steering column switch components must be done in a specified sequence. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.


• Risk of airbag deployment!

• The airbag unit could deploy if mishandled.

• Follow the safety precautions when working on the airbag. Refer to Airbag; Safety Precautions when Working with Airbags.


Follow the instructions described in the repair information regarding disconnecting and connecting the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Removing

- Disconnect the battery. Refer to => [ Battery, Disconnecting ] Battery, Disconnecting.

- Remove the steering wheel.

- Remove the steering column trim.

- Remove the Steering Column Electronic Systems Control Module (J527) - 2 -, refer to => [ Steering Column Electronic Systems Control Module, Valeo ] Steering Column Electronic Systems Control Module (J527), Valeo.

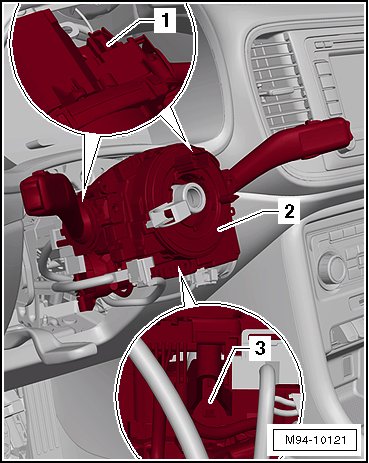

- Release the catches - 1 - (on top) and - 3 - (on the bottom), and remove the steering column combination switch - 2 - straight toward the back from the steering column switch base carrier.

Installing

- Slide the steering column combination switch into the guides on the steering column switch base carrier until it latches secure.

Install in reverse order of removal, noting the following:

- Connect the battery. Refer to => [ Battery, Connecting ] Battery, Connecting.
