2.5L Automatic

Starter

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)

• Torque Wrench (V.A.G 1332)

• Spring-type Clip Pliers (VAS 5024)

Removing

- Disconnect the battery. Refer to => [ Battery, Disconnecting ] Battery, Disconnecting.

- Remove the engine cover upward - arrows -.






- Disconnect the connector - 1 -.






- Loosen the spring clamp - arrow - using the (VAS 5024) and remove the hose - 3 -.

- Release and disconnect the connector (terminal 50) - 1 -.

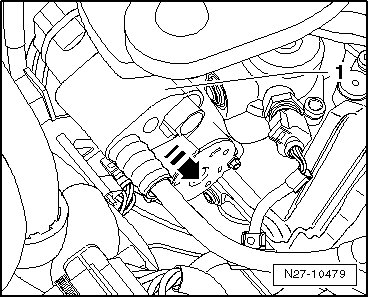

- Remove the cap - 1 - from the solenoid switch in - direction of arrow -.

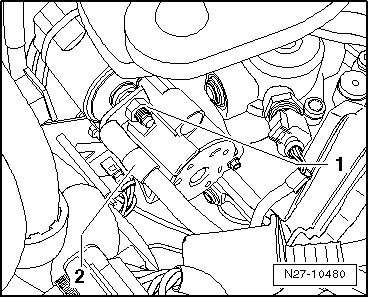

- Remove the nut - 1 - and disconnect the positive cable - 2 - from the solenoid switch.






- Remove the nut - 1 - from the bolt at the top of the starter.






- Remove the wire holder - 2 -.

- Remove the bolt at the top of the starter - arrow -.






- Remove the noise insulation.

- Release and disconnect the harness connectors - arrows -.






- Remove the nut - 1 - from the bolt at the bottom of the starter.






- Remove the wire holder - 2 -.

- Remove the bolt at the bottom of the starter - arrow -.






- Remove the starter from the vehicle.

Installing

Installation is performed in the reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specification. Refer to => [ Starter Overview ] Service and Repair.

- Connect the battery. Refer to => [ Battery, Connecting ] Battery, Connecting.
