2.0L FSI Automatic

Starter

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)

• Torque Wrench (V.A.G 1332)

Removing

- Disconnect the battery. Refer to => [ Battery, Disconnecting ] Battery, Disconnecting.

- Remove the air filter housing.

- Slide the cap off the solenoid switch in - direction of arrow -.

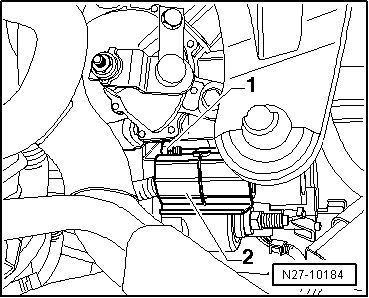

- Remove the positive cable - 1 - and disconnect the connector from terminal 50 - 2 -.






- Remove the nut - 1 - from the bolt at the top of the starter.






- Remove the wire holder - 2 -.

- Remove the bolt at the top of the starter - arrow -.






- Remove the noise insulation.

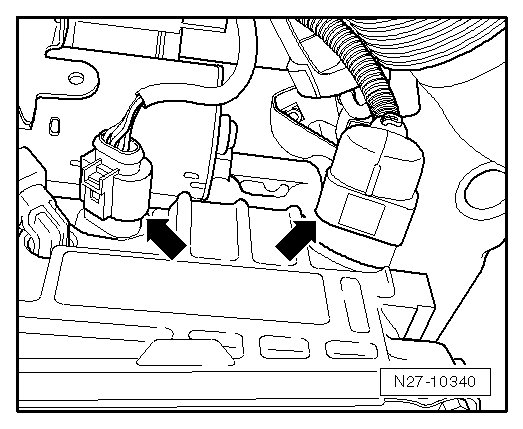

- Disconnect the connectors - arrows -.






- Remove the nut - 1 - from the bolt at the bottom of the starter.






- Remove the wire holder - 2 -.

- Remove the bolt at the bottom of the starter - arrow -.






- Remove the starter from the vehicle.

Installing

Installation is performed in the reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specification. Refer to => [ Starter Overview ] Service and Repair.

- Connect the battery. Refer to => [ Battery, Connecting ] Battery, Connecting.
