Electrical Accessory Panel: Service and Repair

Driver Footwell Fuse Panel


Always follow the instructions regarding disconnecting and connecting the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.


• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Disconnect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the driver side instrument panel cover.

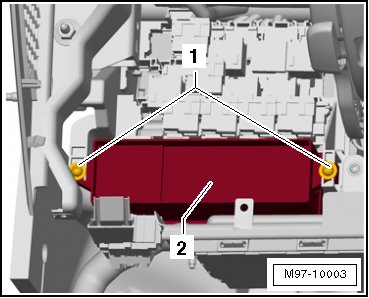

- Remove the screws - 1 - and guide the fuse panel - 2 - downward.






Installing

Installation is performed in the reverse order of removal. Note the following:

- Tighten the threaded connections to 1.5 Nm.

- Connect the battery. Refer to => [ Battery, Connecting ] Battery, Connecting.
