2.0L TDI

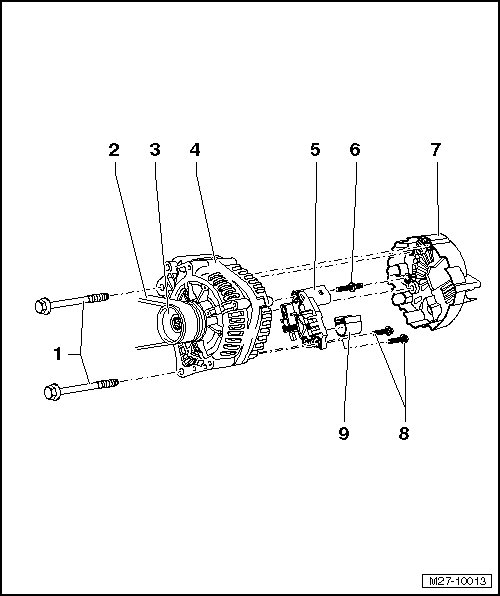

Generator Overview

Bolts and nuts, refer to the Electronic Parts Catalog (ETKA).






1 Bolt

• 20 Nm

2 Ribbed Belt

• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection

3 Ribbed Belt Pulley

• Without free-running hub: 65 Nm

• With free-running hub: 80 Nm

• Removing and installing, refer to => [ Ribbed Belt Pulley Without Free-Running Hub ] Ribbed Belt Pulley Without Free-Running Hub, => [ Ribbed Belt Pulley With Free-Running Hub, Bosch ] Ribbed Belt Pulley With Free-Running Hub, Bosch or => [ Ribbed Belt Pulley With Free-Running Hub, Valeo ] Ribbed Belt Pulley With Free-Running Hub, Valeo.

4 Generator (C)

• Removing and installing, refer to => [ Generator ] Generator.

• Checking, refer to => [ Generator, Checking ] Testing and Inspection.

• B+ wire mount, refer to => [ B+ Wire Connection to Generator ] Procedures.

5 Voltage Regulator (C1)

• Removing and installing, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

6 Bolt with Washer and Threaded Piece

• 4 Nm

7 Cap

8 Bolts

• 2 Nm

9 Cap for Carbon Brushes

No illustration

• B+ wire nut on the back of the generator: 20 Nm

• Nut wire holder on the back of the generator: 3.2 Nm
