2.0L

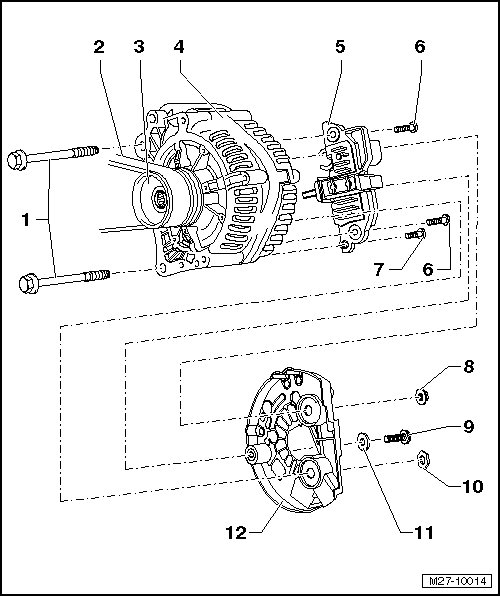

Generator Overview






1 Bolt

• 23 Nm

2 Ribbed Belt

• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.

3 Ribbed Belt Pulley

• Without free wheel: 65 Nm

• With free wheel: 80 Nm

• Removing and installing, refer to => [ Ribbed Belt Pulley Without Free-Running Hub ] Ribbed Belt Pulley Without Free-Running Hub, => [ Ribbed Belt Pulley With Free-Running Hub, Bosch ] Ribbed Belt Pulley With Free-Running Hub, Bosch or => [ Ribbed Belt Pulley With Free-Running Hub, Valeo ] Ribbed Belt Pulley With Free-Running Hub, Valeo.

4 Generator (C)

• Removing and installing, refer to => [ Generator ] Generator.

• Checking, refer to => [ Generator, Checking ] Testing and Inspection.

• B+ wire mount, refer to => [ B+ Wire Connection to Generator ] Procedures.

5 Voltage Regulator (C1)

• Removing and installing, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

6 Bolt

• 2 Nm

7 Bolt

• 2 Nm

8 Nut

• 3.2 Nm

• Cable Holder Nut

9 Bolt

• 4.5 Nm

10 Nut

• 20 Nm

• Nut for the B+ wire

11 Washer

12 Cap
