Tail Lamps in Side Panel Overview

Tail Lamps in Side Panel Overview

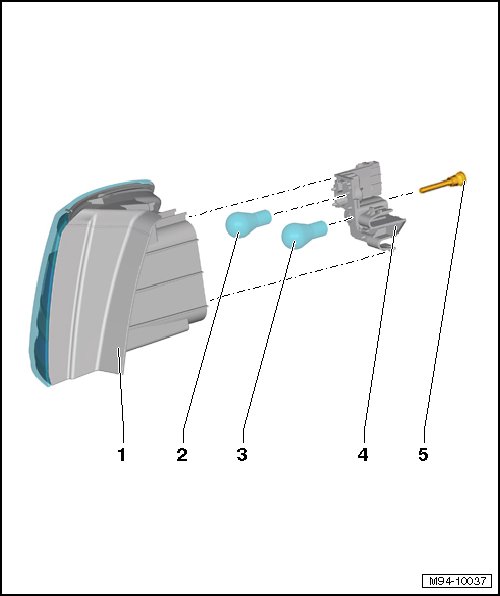

1 Tail Lamp Assembly Housing In Side Panel

• Removing and installing, refer to => [ Tail Lamps in Side Panel ] Tail Lamps in Side Panel.

2 Left Rear Turn Signal Lamp (M6) / Right Rear Turn Signal Lamp (M8)

• 12V / 21 W

3 Left Brake/Tail Lamp Bulb (M21) / Right Brake/Tail Lamp Bulb (M22)

• 12 V/21/5 W

4 Bulb Holder

• Removing and installing, refer to => [ Lamp Carrier For Tail Lamp Assembly In Side Panel ] Lamp Carrier For Tail Lamp Assembly In Side Panel.

5 Screw

• By hand, maximum 2.5 Nm.
