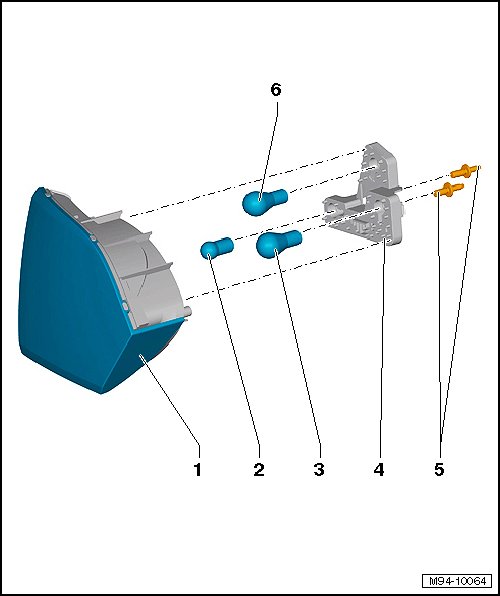

Rear Lid Tail Lamps Overview

Rear Lid Tail Lamps Overview






1 Tail Lamp Assembly Housing In Rear Lid

• Removing and installing, refer to => [ Rear Lid Tail Lamps ] Rear Lid Tail Lamps.

2 Left Tail Lamp Bulb (M4) / Right Tail Lamp Bulb (M2)

• 12V / 5 W

3 Left Daytime Running Lamp and Parking Lamp Bulb (L186) / Right Back-Up Lamp (M17)

• 12V / 21 W

4 Bulb Holder

• Removing and installing, refer to => [ Lamp Carrier For Tail Lamp Assembly In Rear Lid ] Lamp Carrier For Tail Lamp Assembly In Rear Lid.

5 Screw

• 3.5 Nm

6 Left Rear Fog Lamp (L46)

• Left only

• 12 V / 21 W
