Wheel Housing Trim, Vehicles with Side Airbag

Wheel Housing Trim, Vehicles with Side Airbag

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

- Remove the side cushion. Refer to => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag.

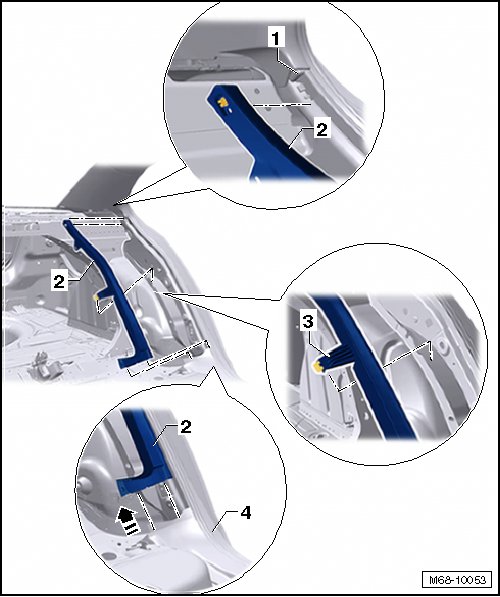

- Loosen the wheel housing trim - 2 - from the C-pillar - 1 -.

- Loosen the clip - 3 - off the body flange.

- Remove the wheel housing trim - 2 - from the retainers in the sill panel strip - 4 - in - direction of arrow -.






Installation

Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary.
