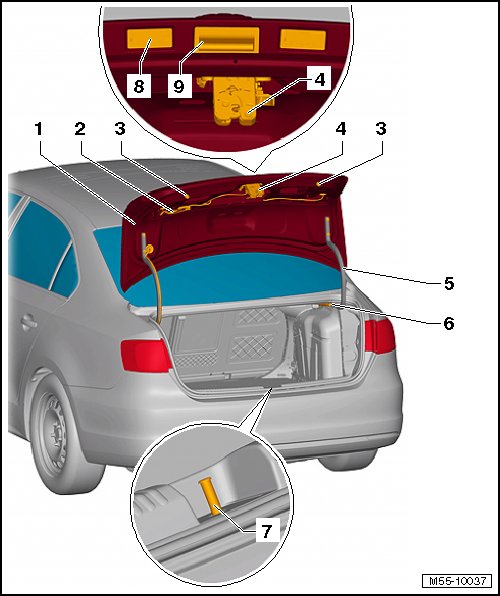

Rear Lid Assembly Overview

Rear Lid Assembly Overview






1 Rear lid

• Removing and Installing, refer to => [ Rear Lid ] Rear Lid

• Adjusting, refer to => [ Rear Lid, Adjusting ] Rear Lid, Adjusting

2 Wiring harness

3 Adjusting buffer

• Left and right

• Adjusting, refer to => [ Rear Lid, Adjusting ] Rear Lid, Adjusting

4 Rear lid latch

• Removing and Installing, refer to => [ Rear Lid Latch ] Rear Lid Latch

• With emergency release => [ Rear Lid Latch ] Rear Lid Latch

5 Hinge

• Removing and Installing, refer to => [ Rear Lid Hinge ] Rear Lid Hinge

6 Gas-filled strut

• Removing and Installing, refer to => [ Gas-Filled Strut ] Gas-Filled Strut

• Releasing the gas, refer to => [ Gas-Filled Strut, Releasing Gas ] Gas-Filled Strut, Releasing Gas

7 Striker

• Removing and Installing, refer to => [ Striker ] Striker

• Adjusting, refer to => [ Rear Lid Striker, Adjusting ] Rear Lid Striker, Adjusting

• For the correct allocation, refer to the => Parts Catalog

8 License plate lamp

9 Rear lid release button

• Removing and Installing, refer to => [ Release Button in Rear Lid Handle ] Release Button in Rear Lid Handle
