Rear Bumper Cover Assembly Overview

Rear Bumper Cover Assembly Overview

• Depending on model version, there are minor differences in the rear bumper covers.

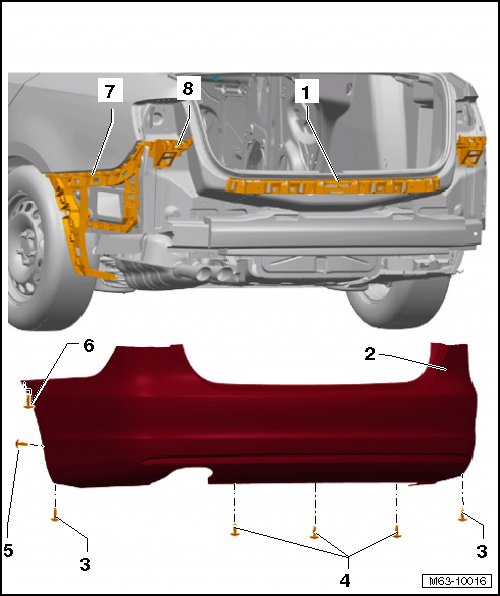

1 Center guide

2 Rear bumper cover

• PP/EPDM material

• Removing and Installing, refer to => [ Rear Bumper Cover ] Rear Bumper Cover

3 Bolt

• 1 on each side

• Tightening specification: 2.7 Nm

4 Bolt

• Quantity: 3

• Tightening specification: 2.7 Nm

5 Bolt

• 1 on each side

• Tightening specification: 2.7 Nm

6 Bolt

• 1 on each side

• Tightening specification: 2.7 Nm

7 Side guide

• Left and right

8 Angle bracket

• Left and right
