Antenna System Overview

Antenna System Overview

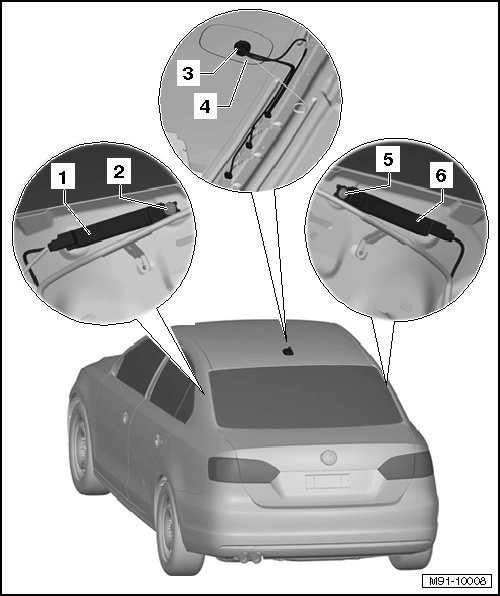

1 Antenna Amplifier (R24)

• FM2

• Removing and installing, refer to => [ Antenna Amplifier (R24)/Antenna Amplifier 2 (R111) ] Service and Repair.

2 Screw

• 2 Nm

3 Roof Antenna

• GSM/GPS/SAT

• Removing and installing, refer to => [ Roof Antenna ] Roof Antenna.

4 Nut

• 7 Nm

5 Screw

• 2 Nm

6 Antenna Amplifier 2 (R111)

• AM/FM

• Removing and installing, refer to => [ Antenna Amplifier (R24)/Antenna Amplifier 2 (R111) ] Service and Repair.
