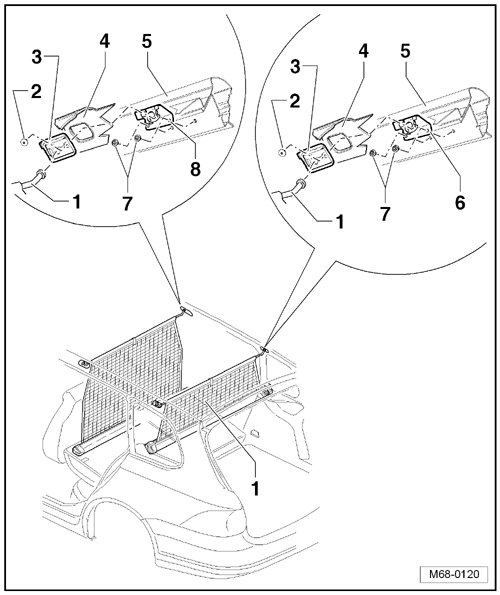

Screen Separator Wall Bracket Overview, Vehicles without Panoramic Sunroof

Screen Separator Wall Bracket Overview, Vehicles without Panoramic Sunroof






1 Screen Separator Wall

• Removing and Installing, refer to => [ Screen Separator Wall ] Screen Separator Wall

2 Bolt

• 2 Nm

3 Lifting eye trim

4 Headliner

• Removing and Installing, refer to => [ Molded Headliner, Wagon ] Molded Headliner, Wagon

5 Roof

6 Rear screen separator wall bracket

7 Bolt

• 4.5 Nm

8 Front screen separator wall bracket
