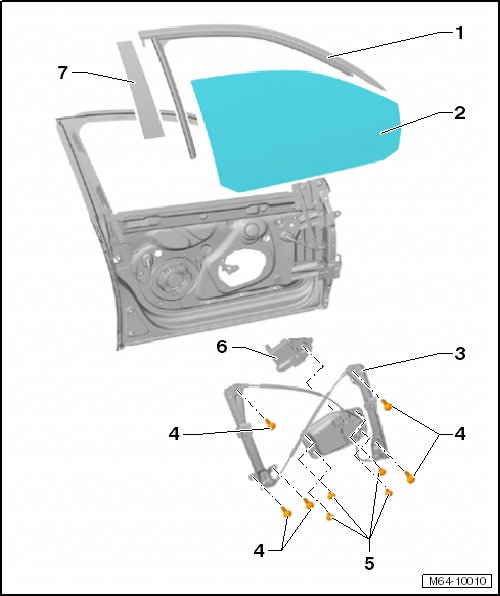

Front Door Window Assembly Overview

Front Door Window Assembly Overview

• The description applies to the right side. The left side is derived accordingly from this.

• Bolt - 4 - is accessible from inside and outside. The bolt as viewed from the outside has a right-hand thread. This means: seen from the outside, bolt is loosened by turning toward left, seen from the inside, bolt is loosened by turning toward right.






1 Window guide

• Removing and Installing, refer to => [ Window Guide ] Window Guide

2 Door window

• Removing and Installing, refer to => [ Door Window ] Door Window

3 Window regulator

• Removing and Installing, refer to => [ Window Regulator ] Front Door Window Regulator

4 Bolt

• Quantity: 5

• Tightening specification: 8 Nm

5 Bolt

• Quantity: 4

• Tightening specification: 8 Nm

6 Window regulator motor

• Removing and Installing, refer to => [ Window Regulator Motor ] Window Regulator Motor

7 Trim

• Removing and Installing, refer to => [ front trim ] Rear Door Window
