Rear Wheel Housing Crash Sensors, Wagon

Rear Wheel Housing Crash Sensors, Wagon

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing


Observe safety precautions for working on airbags.

- Disconnect the battery.

- Fold the bench seat and backrest forward.

- Remove the side cushion:

• with rear side airbags => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag.

• without rear side airbags => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag.

- Remove wheel housing trim => [ Wheel Housing Trim, Wagon ] Wheel Housing Trim, Wagon.

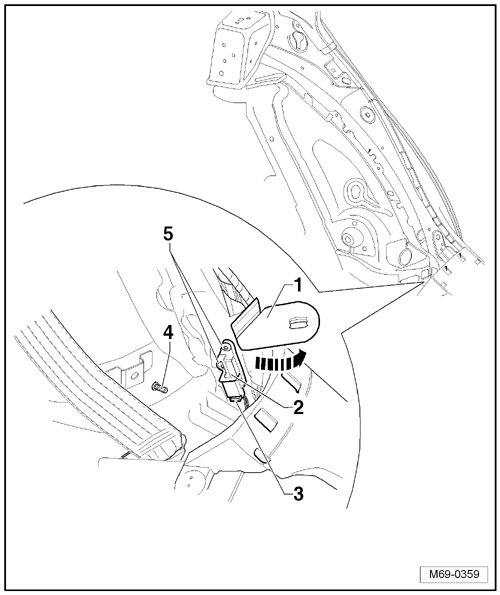

- Remove the wiring harness retaining tab - 1 - from the threaded pins - 4 - in the - direction of arrow -.

- Remove connector - 3 - from crash sensor - 2 -.

- Remove two bolts - 5 - (9 Nm) and remove crash sensor - 2 -.






Installing

- Install in reverse order of removal.

- Switch on ignition.


Make sure no one is in the vehicle.

- Connect vehicle battery.
