Lock Carrier Attachments Assembly Overview

Lock Carrier Attachments Assembly Overview

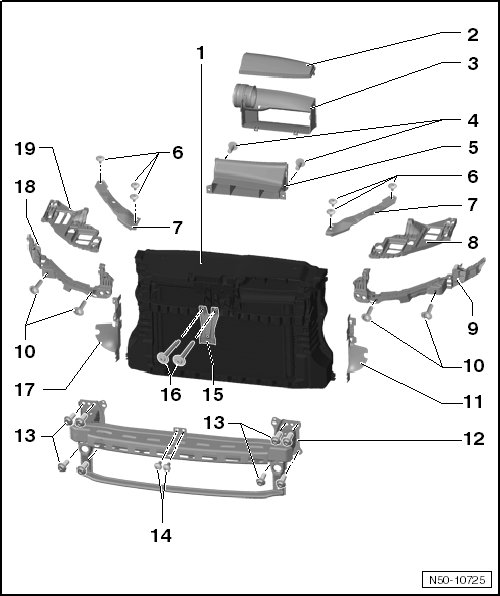

1 Lock carrier with attachments

• Removing and Installing, refer to => [ Lock Carrier with Attachments ] Lock Carrier with Attachments

• Service position, refer to => [ Service Position ] Service Position

2 Cover

3 Assembly piece

4 Bolt

• Quantity: 2

• Tightening specification: 2 Nm

5 Air guide channel

6 Bolt

• 3 pieces per side

• Tightening specification: 8 Nm

7 Angle bracket

• Left

8 Retaining plate

• For the left headlamp

9 Guide piece

• Left

10 Bolt

• 2 pieces per side

• Tightening specification: 5 Nm

11 Air duct

• Left

12 Cross member

13 Bolt

• 4 pieces per side

• Tightening specification: 60 Nm

14 Bolt

• Quantity: 2

• Tightening specification: 8 Nm

15 Lock carrier support

16 Bolt

• Quantity: 2

• Tightening specification: 12 Nm

17 Air duct

• Right

18 Guide piece

• Right

19 Retaining plate

• For the right headlamp
