Upper B-pillar Trim

Upper B-Pillar Trim

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Remove sill panel trim. Refer to => [ Sill Panel Trim ] Sill Panel Trim.

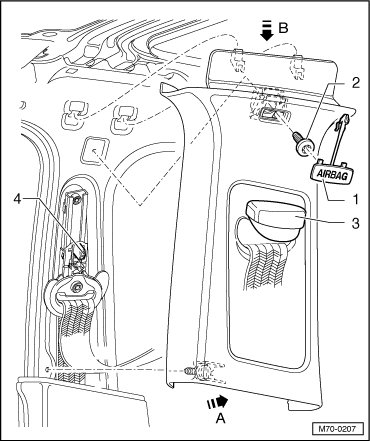

- Remove the airbag emblem - 1 - and remove the bolt - 2 - (4 Nm).

• When re-installing, emblem for airbag - 1 - must be replaced.

- Pull trim in lower area out of mounts in body - arrow A -.

- Remove trim from door seal piping.

- Pull trim out of top mounts - arrow B -.

- Remove belt end fitting from front the seat belt => [ (Item 2) Belt anchor ] Front Safety Belts Assembly Overview.

- Guide out seat belt through trim opening.






Installing

• When installing, driver for belt height adjuster - 4 - and button in trim - 3 - must be located in the same position.

• Before installation, clip must be checked for damage and replaced if necessary.






- Install in reverse order of removal.
