Lower B-pillar Trim

Lower B-Pillar Trim

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- In vehicles with interior monitoring system, switch ignition off.

- Remove sill panel trim. Refer to => [ Sill Panel Trim ] Sill Panel Trim.

- Remove upper B-pillar trim. Refer to => [ Upper B-Pillar Trim ] Upper B-pillar Trim.

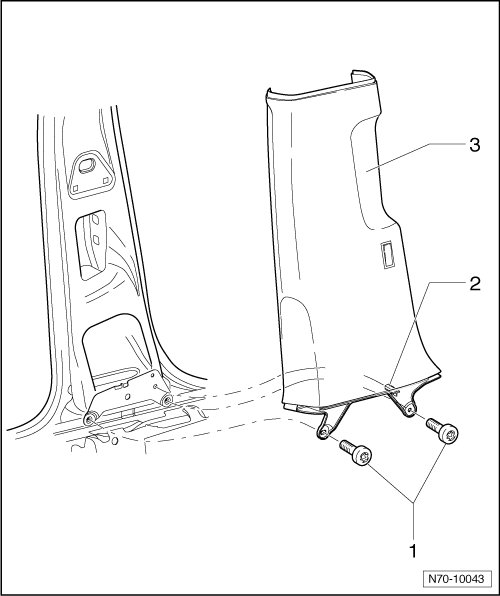

- Remove the two bolts - 1 - (4 Nm).

- Remove trim - 3 - from door seal piping.

- Remove trim in area of guide - 2 - from mounts in body.

- In vehicles with interior monitoring system, disconnect wiring harness from sensor.






Installing

- Install in reverse order of removal.
