Roof Grab Handle Bracket

Roof Grab Handle Bracket

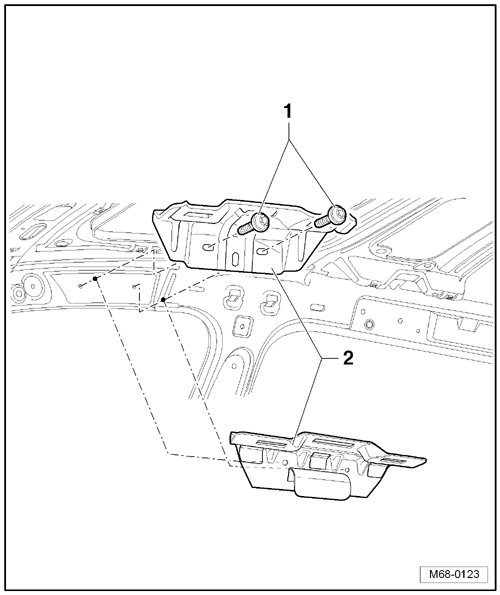

• Illustration shows the right front bracket, removing and installing the remaining brackets is identical.

Removing

- Lower the headliner.

Sedan

The headliner is not removed from the vehicle, the front seats and front passenger's door are not removed.

Wagon

The headliner is not removed from the vehicle. Refer to => [ Molded Headliner, Wagon ] Molded Headliner, Wagon.

- Remove two bolts - 1 - (2 Nm) and remove bracket - 2 -.

Allocation of bracket installed. Refer to Parts Catalog.






Installing

- Install in reverse order of removal.
