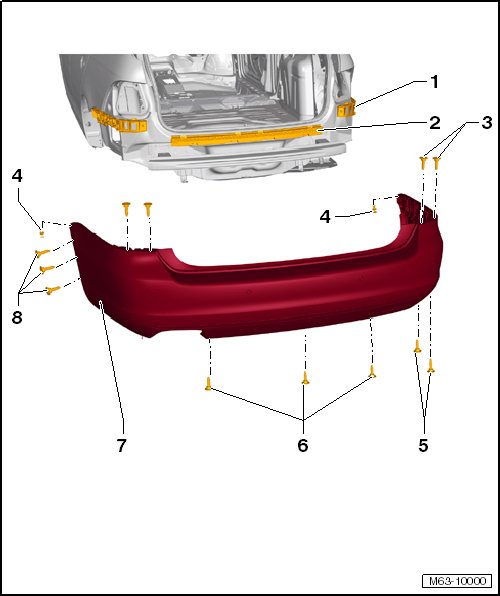

Rear Bumper Cover Assembly Overview

Rear Bumper Cover Assembly Overview

• Slight changes may have to be made to removal and installation procedures of rear bumper cover, depending upon equipment installed in vehicle.






1 Guide trim

2 Securing strip

3 Bolt

• 2 pieces per side

• Tightening specification: 5 Nm

4 Expanding rivet

• 1 pieces per side

5 Bolt

• Quantity: 2

• Tightening specification: 2 Nm

6 Bolt

• Quantity: 3

• Tightening specification: 5 Nm

7 Rear bumper cover

• PP/EPDM material

• Removing, refer to => [ Rear Bumper Cover ] Rear Bumper Cover

8 Bolt

• 3 pieces per side

• Tightening specification: 2 Nm

• Attached to the wheel housing liner
