Antenna System Overview

Antenna System Overview

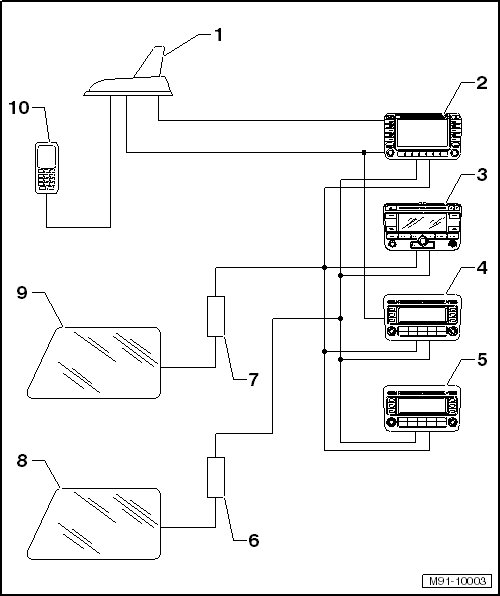

1 Roof Antenna

• GSM/GPS/SAT

• Removing and installing, refer to => [ Roof Antenna ] Roof Antenna.

2 Radio/Navigation Display Control Module (J503)

• RNS 510, refer to => [ RNS 510 ] RNS 510.

3 Radio/Navigation Display Control Module (J503)

• RNS 315 => [ RNS 315 ] RNS 315.

4 Radio

• RCD-510 Premium 8, refer to => [ RCD-510 Premium 8 ] RCD-510 Premium 8.

5 Radio

• RCD-310 Entry, refer to => [ RCD-310 Entry ] RCD-310 Entry.

6 Antenna Amplifier 2 (R111)

• AM/FM

• Removing and installing, refer to => [ Antenna Amplifier (R24)/Antenna Amplifier 2 (R111) ] Service and Repair.

7 Antenna Amplifier (R24)

• FM2

• Removing and installing, refer to => [ Antenna Amplifier (R24)/Antenna Amplifier 2 (R111) ] Service and Repair.

8 Right Side Window With Antenna (R11)

9 Side Window With Radio Antenna 2 (R93)

10 Cell Phone (R54)

• Telephone systems, refer to => [ Telephone Systems ] Telephone Systems.
