Selector Mechanism Overviews

Selector Mechanism Overviews

• Note radio code on vehicles with coded radio.

• Disconnect the Ground (GND) cable from the battery when working on the selector mechanism inside the engine compartment.

• If the battery is to be reconnected, follow the work sequence after connecting the battery.

• To work on the selector mechanism inside the engine compartment, remove the engine cover/air filter if it is located over the selector mechanism.

• The selector mechanism must be removed in order to replace the operating cables. Refer to => [ Shift Mechanism ] Shift Mechanism.

• Do not bend the operating cables.

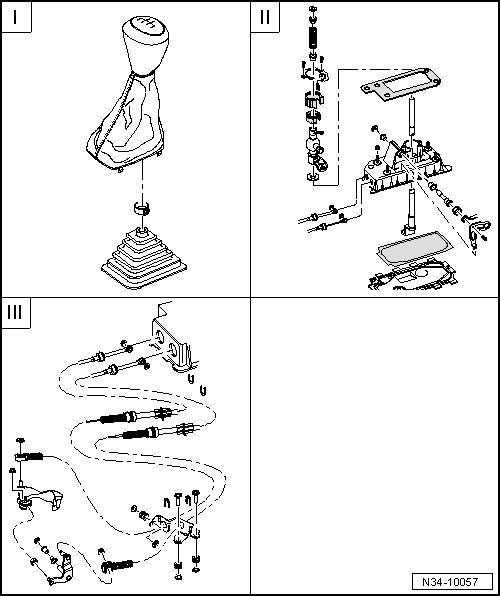

I - => [ Shift Knob, Boot and Noise Insulation Overview ] Shift Knob, Boot and Noise Insulation Overview

II - => [ Shift Lever and Housing Overview ]

III - => [ Shift and Selector Cables Overview ] Shift and Selector Cables Overview

Gearshift mechanism, removing and installing, refer to => [ Shift Mechanism ] Shift Mechanism.

Adjust the gearshift mechanism, refer to => [ Shift Mechanism, Adjusting ] Adjustments.
