Rear Lid Adjusting Buffer

Rear Lid Adjusting Buffer






Removing

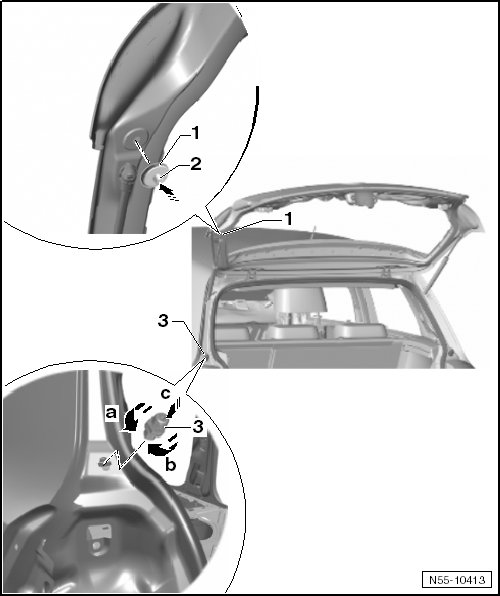

- Turn the adjustment bumper - 3 - 90° to the left - arrow a - and remove it from the side panel - 2 -.

Installation

- Check that the stops are in the correct positions - 1 - in the rear lid - 4 -.

- Insert the adjusting buffer - 3 - into the side panel - arrow c - at a right angle and turn it 90° to the right - arrow b -.

- Adjust the adjusting buffer - 3 -. Refer to => [ Rear Lid Adjustment Buffer, Adjusting ] Rear Lid Adjustment Buffer, Adjusting.
