Storage Compartment, Luggage Compartment Cover
Storage Compartment, Luggage Compartment Cover
• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.
Removing
- Switch off ignition.
2-door vehicles
- Remove the B-pillar upper trim. Belt anchor rail does not need to be removed from front seat belt. Refer to => [ Upper B-Pillar Trim ] Upper B-Pillar Trim.
- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.
- Remove the backrest. Refer to => [ Backrest ] Backrest
- Remove side trim. Refer to => [ Side Trim, 2-door ] Side Trim, 2-door
4-door vehicles through 06.05
- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.
- Remove 4-door side upholstery:
• With rear side airbag, refer to => [ Side Upholstery with Side Airbag, 4-door ] Side Upholstery with Side Airbag, 4-door
• Without rear side airbag, refer to => [ Side Upholstery, 4-door ] Side Upholstery, 4-door
- Wheel housing trim, 4-door, removing. Refer to => [ Wheel Housing Trim, 4-door ] Wheel Housing Trim, 4-door
4-door vehicles with rear side airbag, from 06.05
- Remove 4-door side upholstery:
• With rear side airbag, refer to => [ Side Upholstery with Side Airbag, 4-door ] Side Upholstery with Side Airbag, 4-door
- Wheel housing trim, 4-door, removing. Refer to => [ Wheel Housing Trim, 4-door ] Wheel Housing Trim, 4-door
4-door vehicles without rear side airbag, from 06.05
- Remove wheel housing trim on 4-door vehicles without rear side airbag. Refer to => [ Trim, Wheel Housing, 4-door, Without Side Airbag, from 06.05 ] Trim, Wheel Housing, 4-door, Without Side Airbag, from 06.05
All vehicles
- Remove lock carrier cover from catches in compartment transition area.

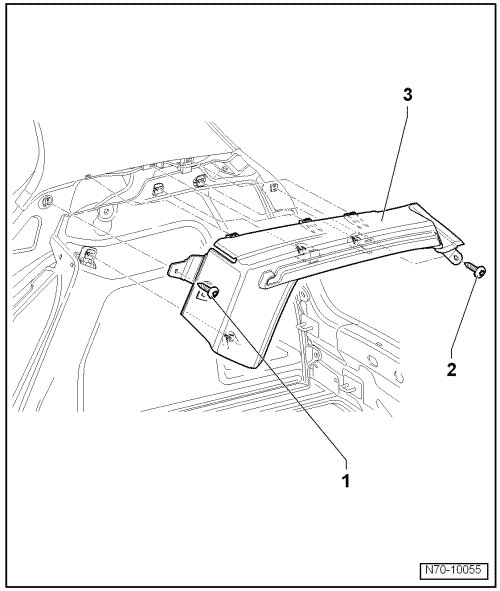

- Remove the bolts - 1 - and - 2 - (1.5 Nm).
- Remove compartment - 3 - from mounts.
- Depending on vehicle equipment, disconnect wiring harnesses from compartment.
Installing
- Install in reverse order of removal.
• Before installation, inspect the retaining clips for damage and replace if necessary.
