Luggage Compartment Side Trim

Luggage Compartment Side Trim

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removing

- Switch off ignition.

- Remove floor covering from vehicle.

2-door vehicles

- Remove the B-pillar upper trim. It is not necessary to remove the belt end fitting and the guide bracket from the front seat belt. Refer to => [ Upper B-Pillar Trim ] Upper B-Pillar Trim.

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

- Remove the backrest. Refer to => [ Backrest ] Backrest

- Remove side trim => [ Side Trim, 2-door ] Side Trim, 2-door

4-door vehicles through 06.05

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

- Remove 4-door side upholstery:

• With rear side airbag, refer to => [ Side Upholstery with Side Airbag, 4-door ] Side Upholstery with Side Airbag, 4-door

• Without rear side airbag, refer to => [ Side Upholstery, 4-door ] Side Upholstery, 4-door

- Wheel housing trim, 4-door, removing. Refer to => [ Wheel Housing Trim, 4-door ] Wheel Housing Trim, 4-door

4-door vehicles with rear side airbag, from 06.05

- Remove 4-door side upholstery:

• With rear side airbag, refer to => [ Side Upholstery with Side Airbag, 4-door ] Side Upholstery with Side Airbag, 4-door

- Wheel housing trim, 4-door, removing. Refer to => [ Wheel Housing Trim, 4-door ] Wheel Housing Trim, 4-door

4-door vehicles without rear side airbag, from 06.05

- Remove wheel housing trim on 4-door vehicles without rear side airbag. Refer to => [ Trim, Wheel Housing, 4-door, Without Side Airbag, from 06.05 ] Trim, Wheel Housing, 4-door, Without Side Airbag, from 06.05

All vehicles

- Remove rear lock carrier cover. Refer to => [ Rear Lock Carrier Cover ] Rear Lock Carrier Cover

- Remove the storage compartment from the side luggage compartment cover. Refer to => [ Storage Compartment, Luggage Compartment Cover ] Storage Compartment, Luggage Compartment Cover

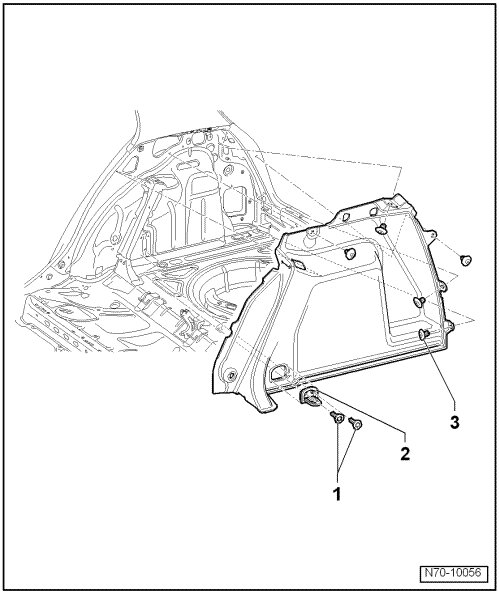

- Remove the two bolts - 1 - (8 Nm) and remove the anchor point - 2 -.

- Remove five press buttons - 3 - and remove trim from vehicle.
