Roof Edge Spoiler

Roof Edge Spoiler

Removing


Before beginning the work, clean and seal off all surrounding part.

Never use cutting wire to remove the spoiler on the edge of the roof.

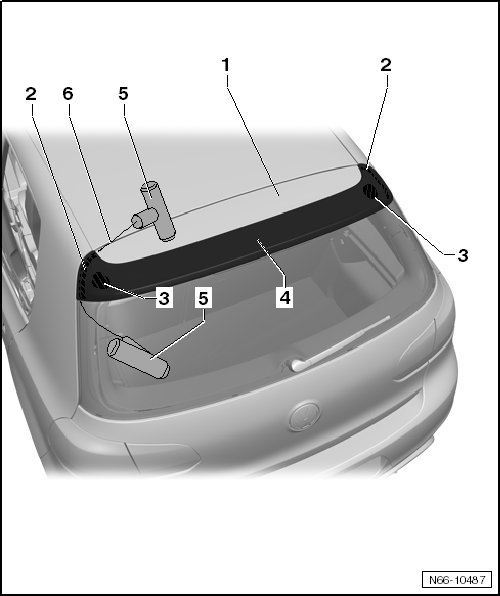

- Thread cutting wire - 6 - between the rear lid - 1 - and spoiler on the edge of the roof - 4 -.

- With "sawing motion" of both pull handles - 5 -, cut through adhesive tape - 2 - and adhesive bead - 3 - on one side.

- Repeat cutting of adhesive tape and adhesive bead on other side.

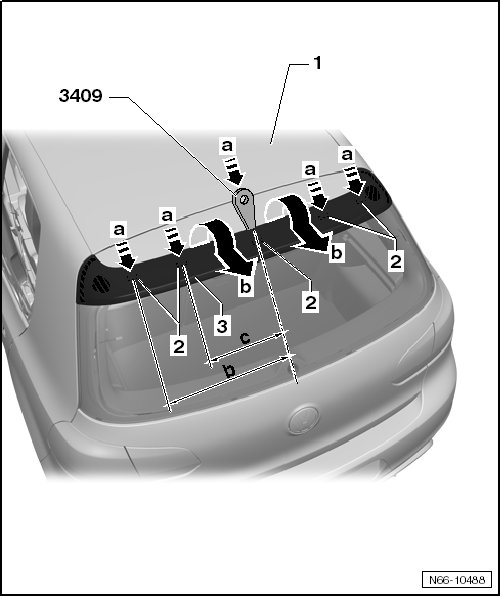

- Insert several Removal Wedge (3409) between the rear lid - 1 - and spoiler on the edge of the roof - arrows a - until all the hooks - 2 - have been disengaged. A clear and definite click must be heard.

Remove the side hooks - dimension c - = 260 mm (10.25 inches) and - dimension d - = 400 mm (15.75 inches).

- Reach between the spoiler on the edge of the roof and the rear lid, press the spoiler - 3 - on the rear lid and remove the it upward - arrows b - from the catches - 4 -.

Installation

• Check the hooks for damage to see if a new spoiler is needed.






• Retaining strip - 6 - is installed. Refer to => [ Roof Edge Spoiler Retaining Strip ] Roof Edge Spoiler Retaining Strip.

• The brake lamp is installed inside the roof edge spoiler. .

• The surfaces of roof edge spoiler - 3 - and rear lid - 2 - are primed.

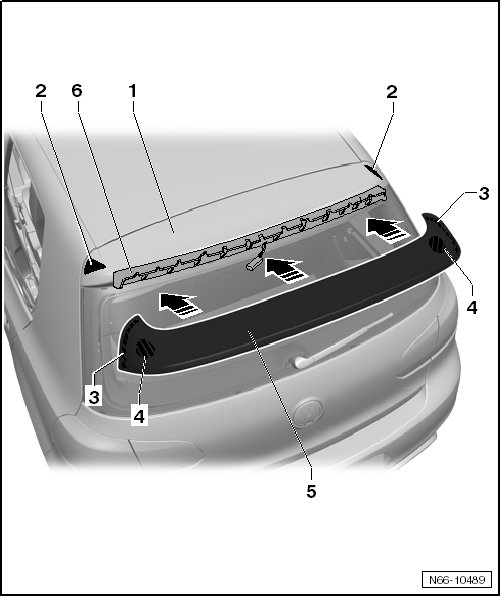

- Apply adhesive bead to primed surface - 3 - or roof edge spoiler.

- Place roof edge spoiler - 5 - on retaining strip - 6 -.

- Align roof edge spoiler - 5 - to rear lid - 1 - and press roof edge spoiler into catch on retaining strip.

- With new rear edge spoilers, remove adhesive tape protective foil - 4 - and press roof edge spoiler firmly into retaining strip.

- With reused roof edge spoiler, secure corners to rear lid with commercially available adhesive tape.
