Rear Lid Tail Lamps Overview

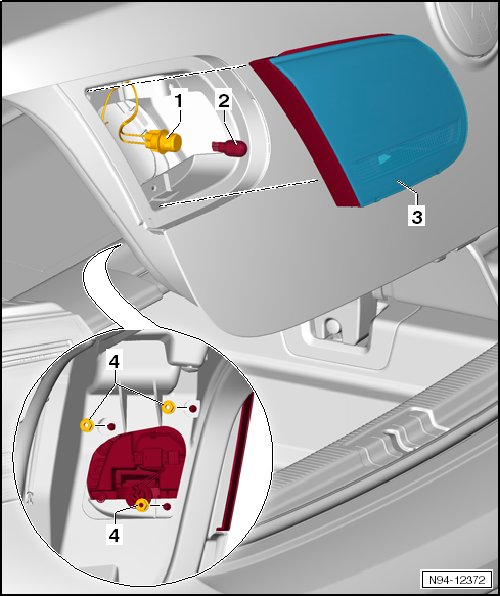

Rear Lid Tail Lamps Overview






1 Lamp Socket

2 Left Tail Lamp Bulb (M4) or Right Tail Lamp Bulb (M2)

• bulb 12V, W16W

• Removing and installing, refer to => [ Rear Lid Tail Lamp Bulb ] Rear Lid Tail Lamp Bulb.

3 Tail Lamp Housing

• Removing and installing, refer to => [ Rear Lid Tail Lamps ] Rear Lid Tail Lamps.

4 Nuts

• 3 Nm

• Quantity 3
