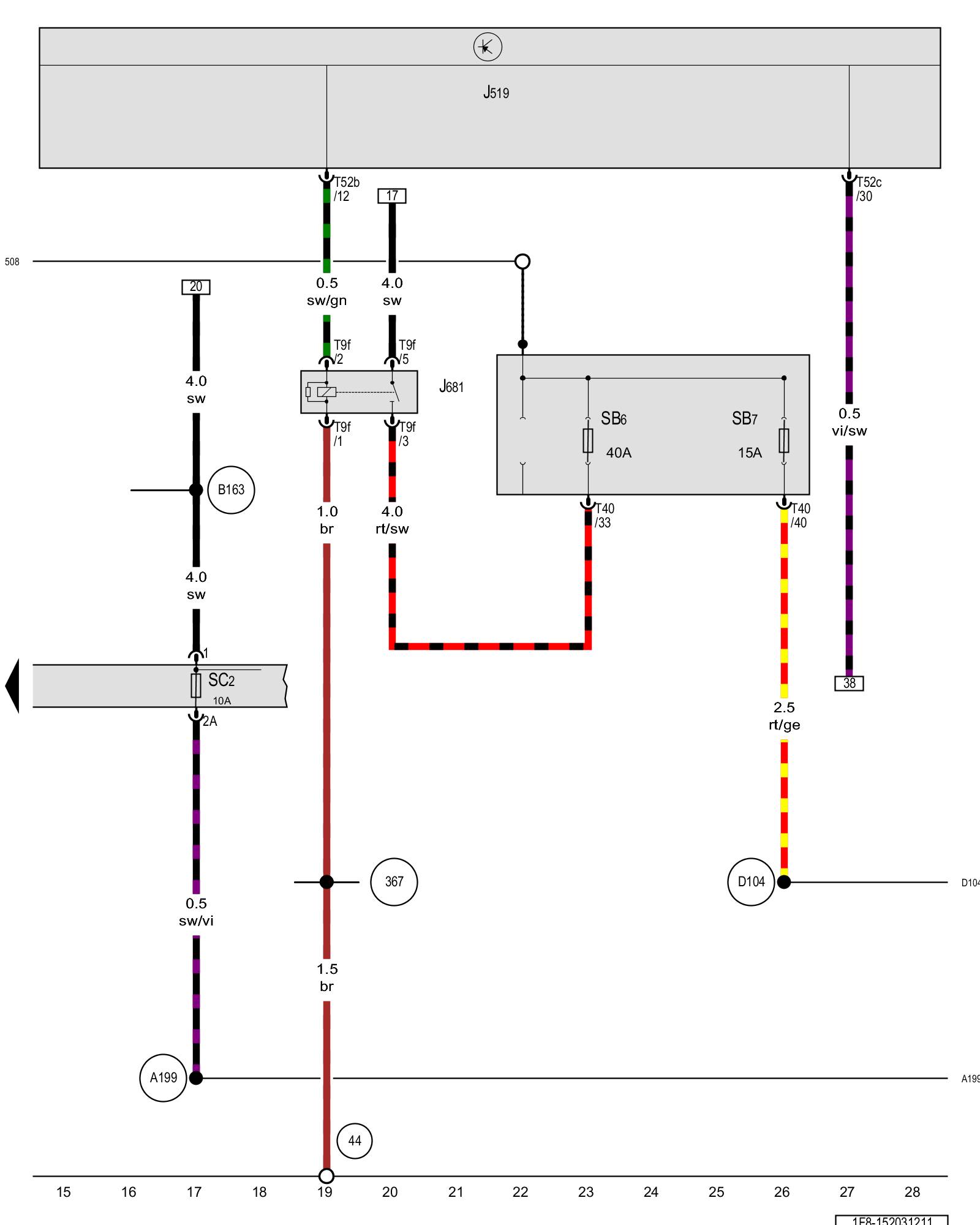

Diagram 152/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 15 power supply relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J681 - Terminal 15 power supply relay 2 Overview Of Relay Carrier

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses

T9f - 9-pin connector

T40 - 40-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior

(367) - Ground connection 2 (in main wiring harness)

(508) - Terminal 30 threaded connection (on E-box)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(D104) - Positive connection 2 (30a) (in engine compartment wiring harness)
