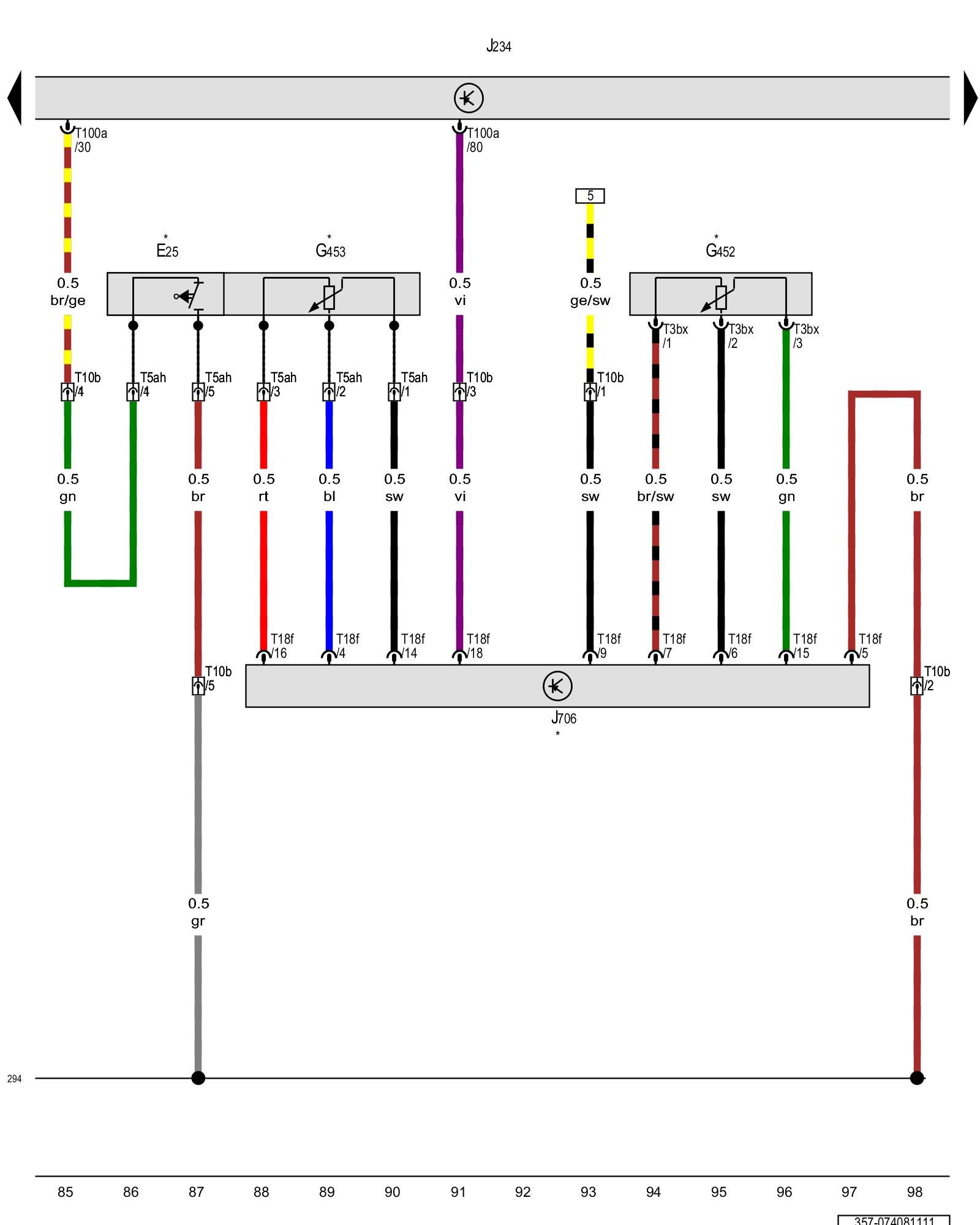

Diagram 74/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger seat belt switch, Passenger occupant detection system pressure sensor, Passenger occupant detection system seat belt force sensor, Airbag control module, Passenger occupant detection system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E25 - Front passenger seat belt switch [1][2]Diagrams

G452 - Passenger occupant detection system pressure sensor Passenger Occupant Detection System Overview [1][2]Diagrams

G453 - Passenger occupant detection system seat belt force sensor Passenger Occupant Detection System Overview [1][2]Diagrams

J234 - Airbag control module Control Modules in Interior [1][2]Air Bag Control Module

J706 - Passenger occupant detection system control module Control Modules in Interior Passenger Occupant Detection System Overview Diagrams

T3bx - 3-pin connector

T5ah - 5-pin connector

T10b - 10-pin connector, Coupling point under the front passenger seat

T18f - 18-pin connector

T100a - 100-pin connector

(294) - Ground connection 9 (in interior wiring harness)

* - USA only
