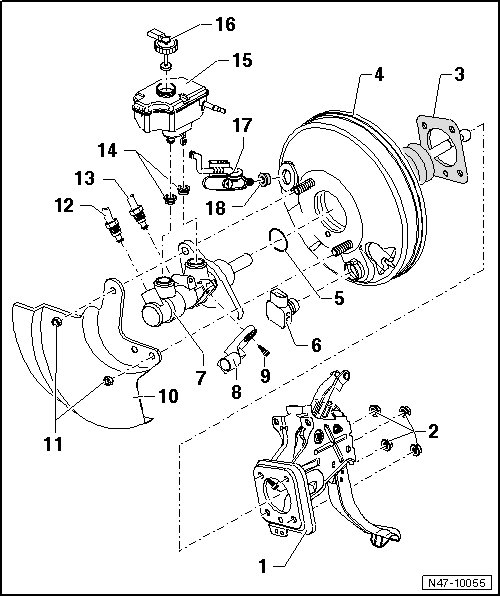

Brake Booster/Master Brake Cylinder Overview






Brake Booster/Master Brake Cylinder Overview

Use only new brake fluid. Observe information on the brake fluid reservoir!






1 Pedal Assembly

2 Self-Locking Nut

25 Nm

Always replace if removed

3 Gasket

For brake booster

4 Brake Booster

On gasoline engines, vacuum is supplied from intake manifold.

Vehicles with FSI engine without HBV are equipped with a pressure sensor. Refer to => [ Brake Booster Pressure Sensor (G294) ] Brake Booster Pressure Sensor (G294)

On vehicles with a hydraulic brake booster, a vacuum sensor is installed. Refer to => [ Brake Booster Vacuum Sensor (G483) ] Brake Booster Vacuum Sensor (G483)

Functional check:

- With the engine switched off, depress brake pedal firmly several times (to exhaust the vacuum in the unit).

- Depress and hold brake pedal with average foot pressure and start engine. If the brake booster is working properly, pedal will be felt to give noticeably under foot (booster assistance becomes effective).

Replace completely if there are malfunctions (check the vacuum system for the brake booster first. Refer to => [ Brake Booster Vacuum System, Checking ] Testing and Inspection)

Removing and installing, refer to => [ Brake Booster ] Brake Booster

5 Seal

6 Brake Booster Vacuum Sensor (G483)

Only on vehicles with the hydraulic brake booster

Removing and installing, refer to => [ Brake Booster Vacuum Sensor (G483) ] Brake Booster Vacuum Sensor (G483)

7 Brake Master Cylinder

Cannot be serviced. Replace as complete unit if malfunctioning.

Removing and installing, refer to => [ Master Brake Cylinder ] Master Brake Cylinder

8 Brake Lamp Switch (F)

Removing and installing, refer to => [ Brake Lamp Switch (F) ] Service and Repair

9 Inner TORX(R) Bolt

5 Nm

10 Heat Shield

11 Self-Locking Nut

25 Nm

Always replace if removed

12 Brake Line, 6 mm Diameter

14 Nm

Master brake cylinder/secondary piston circuit to hydraulic unit

13 Brake Line, 6 mm Diameter

14 Nm

Master brake cylinder/primary piston circuit to hydraulic control unit

14 Sealing Plug

Coat with brake fluid and press into brake fluid reservoir

15 Brake Fluid Reservoir

16 Cap

17 Vacuum Hose

With check valve and, on also vehicles with FSI engine without HBV, with brake booster pressure sensor (G294)

Insert into brake booster

Brake booster pressure sensor removing and installing, refer to => [ Brake Booster Pressure Sensor (G294) ] Brake Booster Pressure Sensor (G294)

18 Sealing Plug

Connection for vacuum hose
