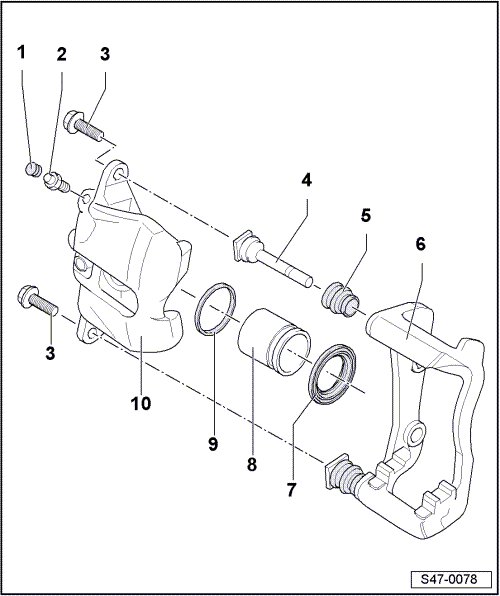

Brake Caliper C60 Overview

Brake Caliper C60 Overview

• Install complete repair kit when servicing.

• Only use mineral spirits to clean brake parts.

• Apply thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.






1 - Dust Cap

• Install onto bleeder valve

2 - Bleeder Valve

• 13 Nm

• Apply a thin coat of assembly paste G 052 150 A2 to the threads before screwing in.

3 - Bolt

• 35 Nm

• Always replace if removed

4 - Guide Pins

5 - Cap

• Lubricate the groove with the grease that comes with the repair kit and then install the cap into the groove on the brake carrier and the guide pin.

6 - Brake Carrier

• Is assembled with the guide pins and caps as well as with sufficient grease on the guide pins.

• If protective caps or guide pins are damaged, install repair kit. Use supplied grease packet to lubricate guide pins.

7 - Cap

• Removing and installing, refer to => [ Piston, C60 Caliper ] Piston, C60 Caliper

• Do not damage when installing piston.

8 - Pistons

• Removing and installing, refer to => [ Piston, C60 Caliper ] Piston, C60 Caliper

• Apply thin coat of assembly paste G 052 150 A2 to piston before inserting.

9 - Seal

• Removing and installing, refer to => [ Piston, C60 Caliper ] Piston, C60 Caliper

10 - Brake Caliper
