Front Seat Backrest Blower Fan V269, Passat CC from MY 2009 and CC from MY 2010

Front Seat Backrest Blower Fan V269, Passat CC from MY 2009 and CC from MY 2010

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

Always read the General Safety Precautions before working on airbags, belt tensioners and battery cut-out units (pyrotechnical components). Refer to => [ Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions ] Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions.

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Remove the front seat. Refer to => [ Front Seat ] Front Seat

- Attach the seat to the fixture for seat repair (VAS 6136).

- Remove the front seat belt latch => [ Front Seat Belt Latches ] Front Seat Belt Latches

- Remove seat cap => [ Cover Cap ] Cover Cap

Electric seat

- Remove electric seat front end trim => [ Power Seat Front Side Trim ] Power Seat Front Side Trim

- Remove electric seat trim => [ Power Seat Trim ] Power Seat Trim

Partially electric seat

- Remove partially electric seat trim => [ Partial Power Seat Trim ] Partial Power Seat Trim

Height-adjustable seat

- Remove height-adjustable seat trim => [ Height-Adjustable Seat Trim ] Height-Adjustable Seat Trim

Fixed seat

- Remove fixed seat trim => [ Seat Trim, without Height Adjustment ] Seat Trim, without Height Adjustment

Passenger Seat with Pass-Through

- Remove the front seat trim => [ Passenger Seat Trim, with Pass-Through ] Passenger Seat Trim, with Pass-Through.

- Remove bracket and actuating lever, trim of partially electric/height adjustable seat => [ Partial Power/Height-Adjustable Seat Trim Bracket and Operating Lever ] Partial Power/Height-Adjustable Seat Trim Bracket and Operating Lever

All seats

- Remove front seat backrest. Refer to => [ Left Front Seat Backrest ] Left Front Seat Backrest

- Secure backrest on fixture for seat repair (VAS 6136).

- Remove headrests => [ Headrest ] Headrest

Remove the cover and upholstery from the front seat backrest:

• all vehicles except the Trendline => [ Front Backrest Cover and Upholstery, Except Trendline ] Front Backrest Cover and Upholstery, Except Trendline

• Trendline => [ Front Backrest Cover and Upholstery, Trendline ] Front Backrest Cover and Upholstery, Trendline

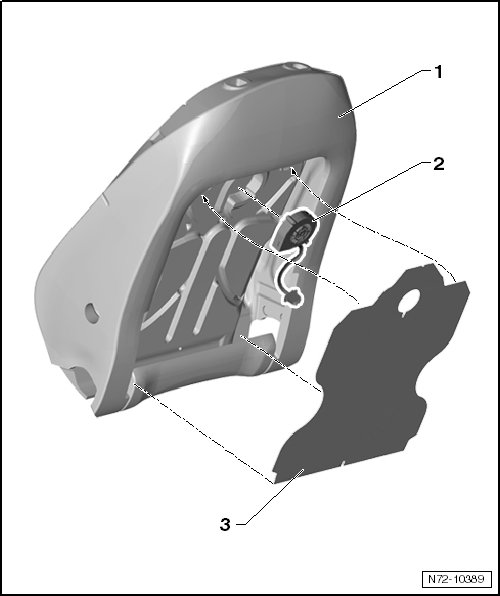

- Cut the glued on fleece - 3 - around the front seat blower fan (V269) - 2 - and remove it from the cushion - 1 -.

- Remove the front seat backrest blower fan (V269) from the cushion.






Installing

- Install the front seat backrest blower fan (V269) - 2 - into the opening in the cushion - 1 -.

- Remove the protective strip from fleece - 3 - and affix the fleece to cushion - 1 - without any folds in it.






- Install in reverse order of removal.
