Sun Visors, Passat CC from MY 2009 and CC from MY 2010

Sun Visors, Passat CC from MY 2009 and CC from MY 2010

• The following describes removing and installing on the right side of the vehicle. Removal and installation for the left-hand side is performed in the same manner.

Removing

- If equipped, open the Panorama sunroof.

- Switch off the ignition.

- Remove the front interior and reading lights.

- Remove the roof grab handles on vehicles without Panorama sunroof. Refer to => [ Roof Grab Handles ] Service and Repair

- Remove upper trim on A-pillars. Refer to => [ A-Pillar Upper Trim for Passat CC from 2009 and CC from 2010 ] A-Pillar Upper Trim for Passat CC from 2009 and CC from 2010

- Remove the upper B-pillar trim from the brackets. Refer to => [ Upper B-Pillar trim, Tightening and Loosening from Mount for Passat CC from 2009 and CC from 2010 ] Upper B-Pillar trim, Tightening and Loosening from Mount for Passat CC from 2009 and CC from 2010.

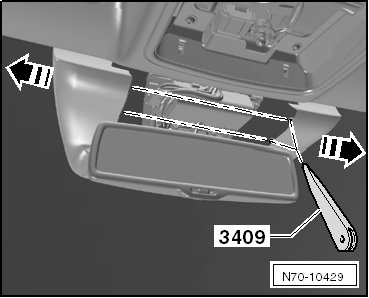

- Using the trim removal wedge (3409) remove the caps from the mirror - arrows -.

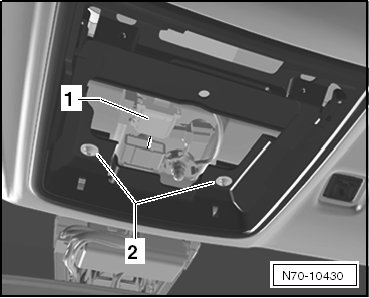

- Disconnect the connector - 1 - and remove the screws - 2 - (1.6 Nm).

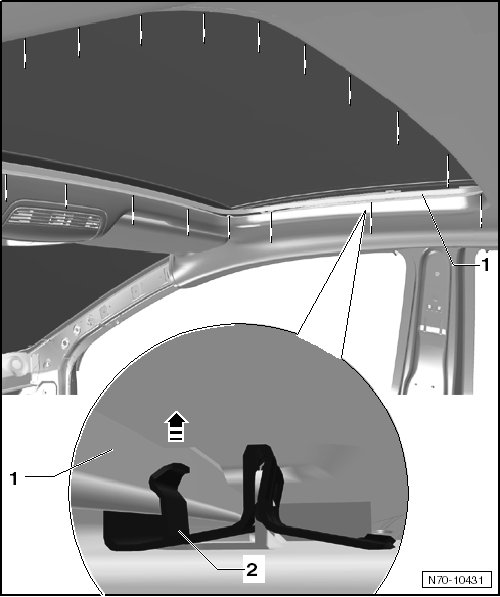

- On vehicles equipped with a Panorama sunroof, remove the clamping profile - 1 - from the mounting clamps - 2 - - arrow -using the release tool (T10236) and the trim removal wedge (3409).

• In total, the clamping profile is attached by 20 clips.

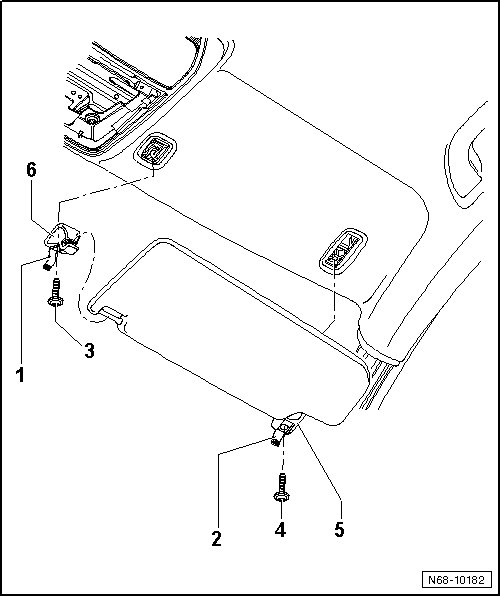

- Using a small screwdriver, open cover caps - 1 - and - 2 -.

- Remove bolts - 3 - and - 4 - (2 Nm).

- Carefully pull sun visor mount - 5 - out of mount.

- Pull sun visor mount - 6 - out of mount.

• The sun visor is now hanging on the sun visor wiring harness.

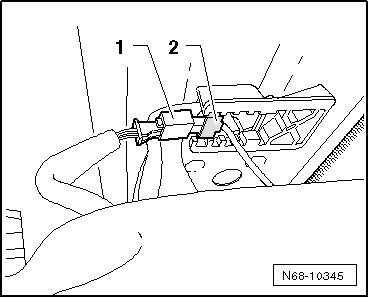

- Grab between the headliner and roof and slightly lift sun visor connector - 1 - and push it in direction of drive over the brace - 2 -.






- Next, push the connector through the opening in the headliner and disconnect it.

Installing

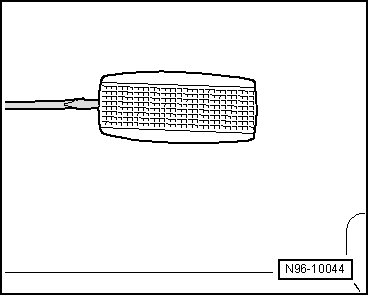

• When installing the sun visor, apply a felt strip (part number: 533.863.288.A) over the connector.

• Before installing, center the sheet metal nuts for the inner sun visor bracket.

- Using a diagonal cutter, remove the - shaded area - from the flat wire connector - 1 - that is coming out of the opening in the roof crossmember.






To prevent a possible short circuit, be careful not to damage the connector when cutting the center vertical brace.

- Carefully pry the "vanity mirror light" out of the headliner using the trim removal wedge (VAS 3409) or a screwdriver.






- Slide the bonded connector horizontally, opposite the direction of travel, between the roof crossmember and headliner. The - shaded area - of the connector faces up.






- Reach into the "vanity mirror light" opening and carefully insert the connector opposite the drive direction.

- Install in reverse order of removal.
