Storage Compartment, Standard Center Console, Passat and Passat Wagon from MY 2006, and Passat CC from MY 2009

Storage Compartment, Standard Center Console, Passat and Passat Wagon from MY 2006, and Passat CC from MY 2009

Removing

- Remove footwell trim. Refer to => [ Footwell Trim ] Footwell Trim

- Remove front ashtray or front compartment. Refer to => [ Front Ashtray or Front Storage Compartment, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Front Ashtray or Front Storage Compartment, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

- Remove Infotainment trim. Refer to => [ Infotainment Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Infotainment Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

- Remove the cover, "Climatronic/Climatic". Refer to => [ Climatronic and Climatic Cover, Passat from MY 2006, Passat Wagon from MY 2006 and Passat CC from MY 2009 ] Climatronic and Climatic Cover, Passat from MY 2006, Passat Wagon from MY 2006 and Passat CC from MY 2009.

Vehicles without "Climatronic/Climatic"

- Remove heater and ventilation controls.

"Climatic" A/C System with Manual Control

Remove the heater and A/C controls, Climatic.

"Climatronic" A/C System with Automatic Control

- Remove the front A/C display control head (E87) with the Climatronic control module (J255).

- Remove the Standard center console, Passat from MY 2006, Passat Wagon from MY 2006 and Passat CC 2009, refer to => [ Standard Center Console, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Standard Center Console, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009.

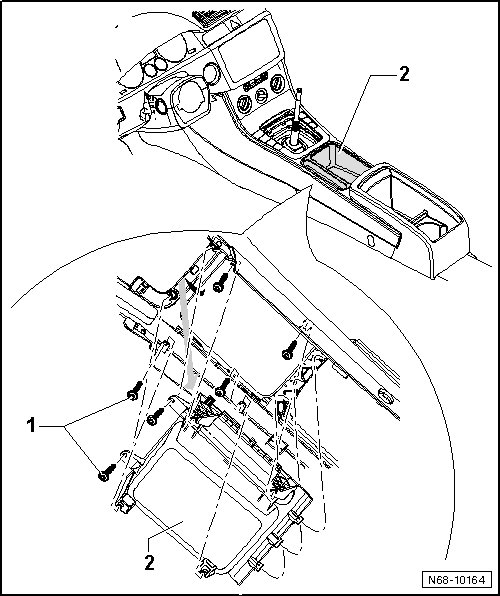

- Remove six screws - 1 - (1.5 Nm).

- Lower storage compartment - 2 - slightly in front area.

- Slide storage compartment forward and remove it downward from center console - arrow -.






Installing

- Install in reverse order of removal.
