Center Console, Air Channel, CC from MY 2010

Center Console, Air Channel, CC from MY 2010

Removing

- Remove the center console, CC from MY 2010, refer to => [ Center Console, CC from MY 2010 ] Center Console, CC from MY 2010.

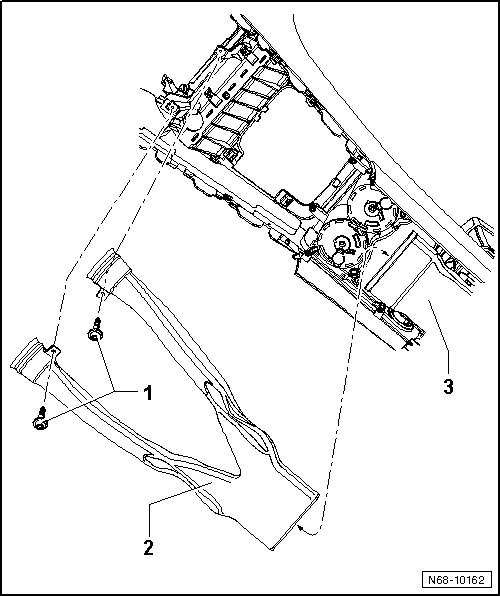

- Remove two screws - 1 - (1.5 Nm) and remove front air duct - 2 - from rear air duct - 3 -.






Installing

- Install in reverse order of removal.
