Removal and Replacement






Clutch System Overviews

Turn off the ignition and disconnect the battery ground cable.

Connect the battery and follow the procedure to be performed after connecting the battery.

Lubricate all bearing areas and contact surfaces. For the correct grease, refer to the Parts Catalog.

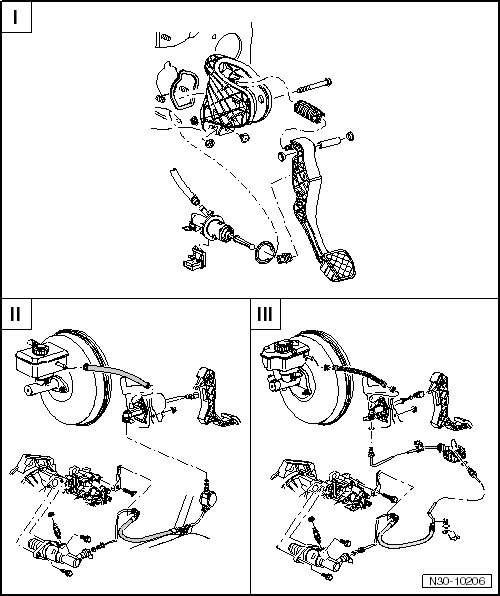

I - => [ Clutch Pedal ]

II - => [ Hydraulics ]

III - Hydraulics, Right Hand Drive (RHD)

Not available in the US/Canadian market

Clutch Pedal






1 Bulkhead

With a studs for the mounting bracket.

2 Gasket

Always replace.

Between the mounting bracket and bulkhead.

With self adhesive.

Attached to the mounting bracket.

3 Mounting Bracket

For the clutch pedal.

Some equipment versions have a sound absorber. Refer to => [ Bracket with Sound Absorber ].

Removing and installing, refer to => [ Mounting Bracket ] Mounting Bracket.

4 Bolt

5 Over-Center Spring

Removing and installing, refer to => [ Over-Center Spring ] Over-Center Spring.

6 Bushing

7 Pin

8 Clutch Pedal

Removing and installing, refer to => [ Clutch Pedal ] Clutch Pedal.

9 Mount

To remove and install, disconnect the clutch master cylinder from the clutch pedal. Refer to => [ Clutch Pedal ] Clutch Pedal.

10 Gasket

Always replace.

Between the clutch master cylinder and the mounting bracket.

11 Clutch Master Cylinder

Remove and install after removing the mounting bracket. Refer to => [ Mounting Bracket ] Mounting Bracket.

12 Clutch Position Sensor (G476)

Removing and installing, refer to => [ Clutch Position Sensor (G476) ] Service and Repair.

Can be checked in "Guided Fault Finding" using the vehicle diagnostic tester.

The clutch position sensor is called the clutch pedal switch (F36) in "Guided Fault Finding".

13 Clip

The clip must be removed in order to remove/install the hose/line assembly.

14 Supply Hose

To the brake fluid reservoir.

Plastic with additional seals, refer to => [ Plastic Supply Hose ].

15 Nut

25 Nm

Always replace.

Self locking.

Quantity: 3

For the mounting bracket to the bulkhead.

16 Nut

25 Nm

Always replace.

Self locking.

17 Jounce Bumper

For the clutch pedal.

Bracket with Sound Absorber - arrow -

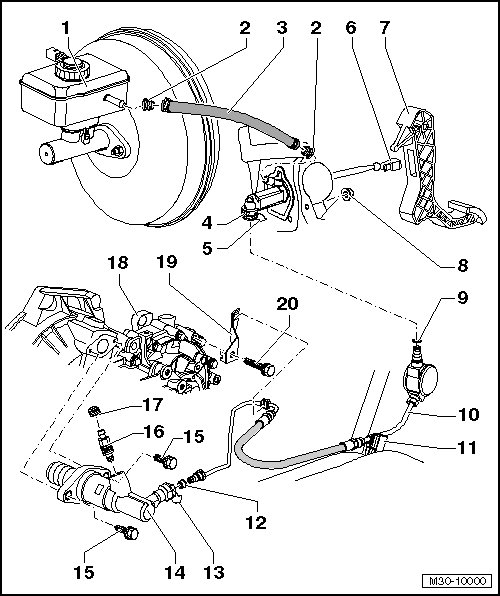

Hydraulics






1 Brake Fluid Reservoir

2 Seal

For the plastic supply hose

The seals must be inside the supply hose.

3 Supply Hose

To the brake fluid reservoir.

Plastic with additional seals, refer to => [ Plastic Supply Hose ].

4 Clutch Master Cylinder

Removing and installing, refer to => [ Clutch Master Cylinder ] Service and Repair.

5 Clip

The clip must be removed in order to remove/install the hose/line assembly.

6 Mount

To remove and install, disconnect the clutch master cylinder from the clutch pedal. Refer to => [ Clutch Pedal ] Clutch Pedal.

7 Clutch Pedal

Removing and installing, refer to => [ Clutch Pedal ] Clutch Pedal.

8 Nut

25 Nm

Always replace.

Self locking.

Quantity: 3

For the mounting bracket to the bulkhead.

9 Seal/O-ring

Installed on the hose/line assembly connection.

Install using brake fluid.

Seal or O-ring type, refer to => [ Seal/O-ring Type for the Hose/Line Assembly ].

For the correct allocation, refer to the Parts Catalog.

10 Hose/Line Assembly

For the correct allocation, refer to the Parts Catalog.

To remove, remove the battery and battery tray.

11 Bracket

Attached to the body,

12 Seal/O-ring

Installed on the hose/line assembly connection.

Install using brake fluid.

Seal/O-ring type, refer to => [ Seal/O-ring Type for the Hose/Line Assembly ].

For the correct allocation, refer to the Parts Catalog.

13 Clip

The clip must be removed in order to remove/install the hose/line assembly.

14 Clutch Slave Cylinder

Removing and installing, refer to => [ Clutch Slave Cylinder ] Service and Repair.

15 Bolt

20 Nm

16 Vent Valve

Clutch system, bleeding. Refer to => [ Clutch System, Bleeding ] Procedures.

17 Cap

18 Transmission

19 Bracket

20 Bolt

20 Nm

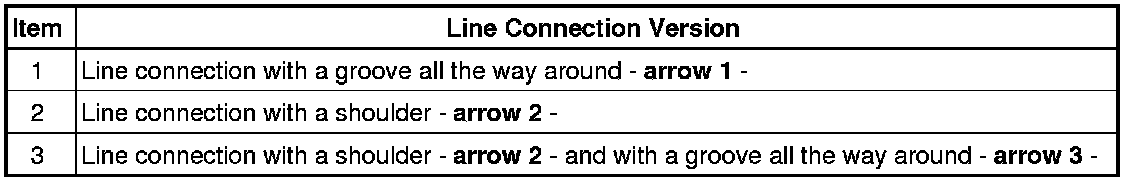

Seal/O-ring Type for the Hose/Line Assembly










The seal/O-ring must be installed in the groove - arrows 1 and 3 -.

Plastic Supply Hose





The seals - 2 - must be inside the supply hose - 1 -.
