Engine, Removing from the Scissor Lift Table (VAS 6131)

Engine, Removing from the Scissor Lift Table (VAS 6131)

Special tools, testers and auxiliary items required

• Lifting Tackle (3033)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

Procedure

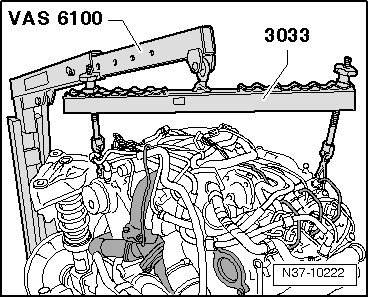

- Hold the engine securely in the installed position as illustrated.






- Remove the transmission from the engine. Refer to => [ Engine/Transmission, Separating ] Engine/Transmission, Separating.

- Lift the engine from the scissor lift table (VAS 6131).
