Seals and Gaskets: Application and ID

Right Flange Shaft Seal, Differentiating

The seal - 1 - for the right flange shaft is inside a sleeve - 2 -.

There are different versions:

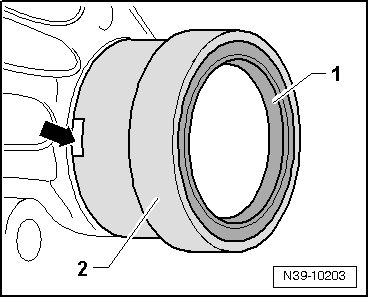

The seal - 1 - and the sleeve - 2 - are two separate pieces. How to recognize: There are notches - arrow - arranged around the sleeve.

Seal replacing, refer to => [ Right Flange Shaft, Seal and Sleeve (Two-Piece) ] Right Flange Shaft, Seal and Sleeve (Two-Piece).

The seal - 1 - and the sleeve - 2 - are a single piece. How to recognize: There are no notches in the sleeve

Seal and sleeve replacing, refer to => [ Right Flange Shaft, Seal with Sleeve (One-Piece) ] Final Drive, Differential (0A4 Manual Transmission)Right Flange Shaft, Seal With Sleeve (One-Piece).
