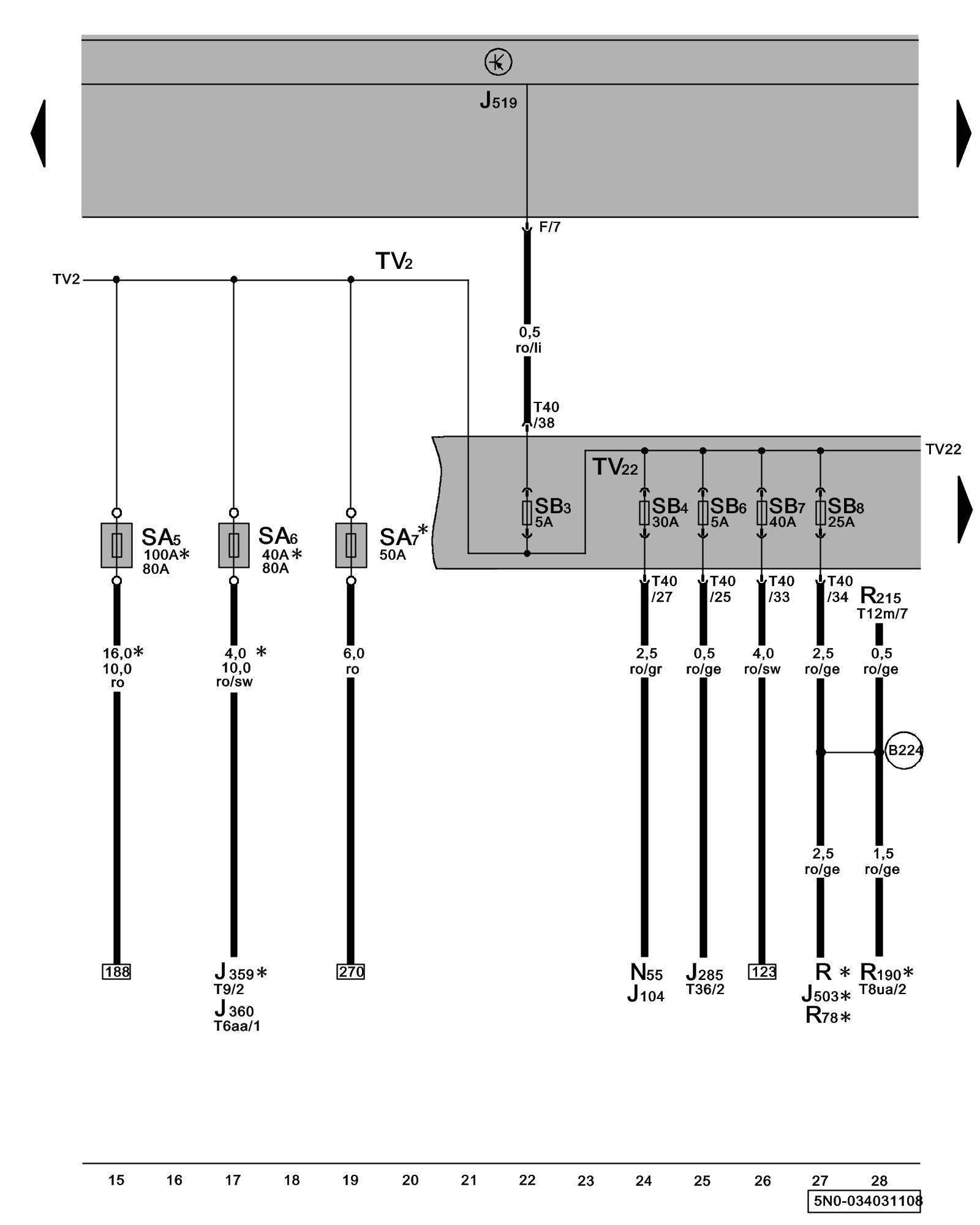

Diagram 34/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


SA-Fuses, SB-Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module Control Modules in Engine Compartment [1][2]Diagrams

J285 - Instrument Cluster Control Module Control Modules in Pass Compartment

J359 - Preheating Coolant, Low Heat Output Relay Relay Carrier Overview

J360 - Preheating Coolant, High Heat Output Relay Relay Carrier Overview

J503 - Radio/Navigation Display Control Module Radio Systems Overview

J519 - Vehicle Electrical System Control Module Control Modules in Pass Compartment

N55 - ABS Hydraulic Unit Antilock Brake System w/ Anti Slip Regulation

R - Radio Control Modules in Pass Compartment

R78 - TV Tuner Control Modules in Pass Compartment

R190 - Digital Satellite Radio Tuner Control Modules in Pass Compartment

R215 - Digital Satellite Radio Tuner Radio Systems Overview

SA5 - Fuse 5 (on fuse panel A) Overview Of Fuses

SA6 - Fuse 6 (on fuse panel A) Overview Of Fuses

SA7 - Fuse 7 (on fuse panel A) Overview Of Fuses

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

SB4 - Fuse 4 (on fuse panel B) Overview Of Fuses

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses

T6aa - 6-Pin Connector

T8ua - 8-Pin Connector

T9 - 9-Pin Connector, yellow

T12m - 12-Pin Connector

T36 - 36-Pin Connector

T40 - 40-Pin Connector

TV2 - Terminal 30 Wire Junction

TV22 - Terminal 30a Wire Junction 2

(B224) - Radio Connection 1 (in interior wiring harness)

* - Where applicable
