Slotted Guide Rail

Slotted Guide Rail

Removing

- Sunroof Glass Panel, Removing => [ Sunroof Glass Panel ] Service and Repair

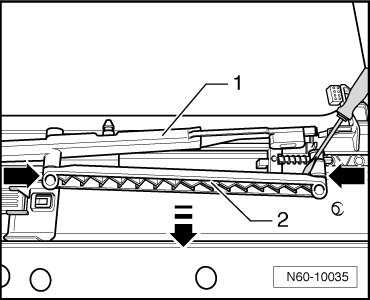

- Using a screwdriver, unclip spacer - 2 - at front of slotted guide rail - 1 - and retaining hooks - arrows - at rear of guide.

- Pull spacer - 2 - in - direction of arrow - out of slotted guide rail - 1 - and guide retaining hook.

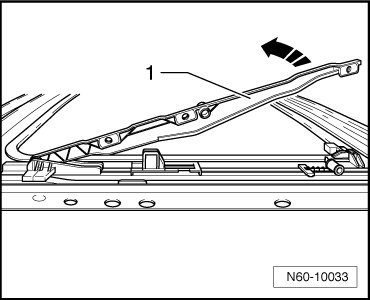

- Fold up slotted guide rail - 1 - in - direction of arrow -.

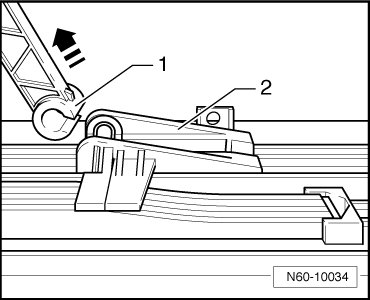

- Slide front guide - 2 - toward front and pull out slotted guide rail - 1 - in - direction of arrow - from front guide - 2 -.





Installing

To install, perform the steps used for removal in reverse order.
