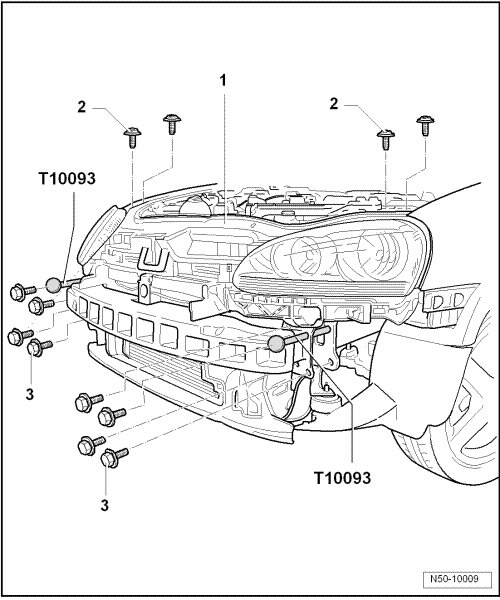

Lock Carrier Service Position Assembly Overview

Lock Carrier Service Position Assembly Overview





1 Lock carrier with attachments

• Removing and Installing => [ Lock Carrier with Attachments ] Removal and Replacement

• Service position => [ Lock Carrier Service Position ] Lock Carrier Service Position

2 Bolt

• Qty. 4

• 8 Nm

3 Bolt

• Qty. 8

• 60 Nm
