Window Frame Trim

Rear Lid Trim Panel, Rabbit from MY 2009

Window Frame Trim

Removal

- Remove rear lid trim. Refer to => [ Rear Lid Trim ] Rear Lid Trim

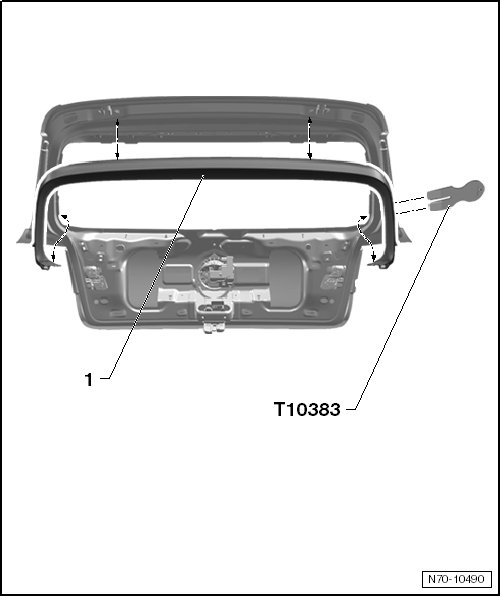

- Loosen the trim panel - 1 - on the sides from the mounts in the lid using the wedge (T10383 ).

- Pull trim on upper edge out of mounts.

- Remove the trim panel from the mounts in the rear lid near the aligning pins.





Installation

- To install, perform the steps used for removal in reverse order.

• Before installing, check securing clips for damage and replace if necessary.
