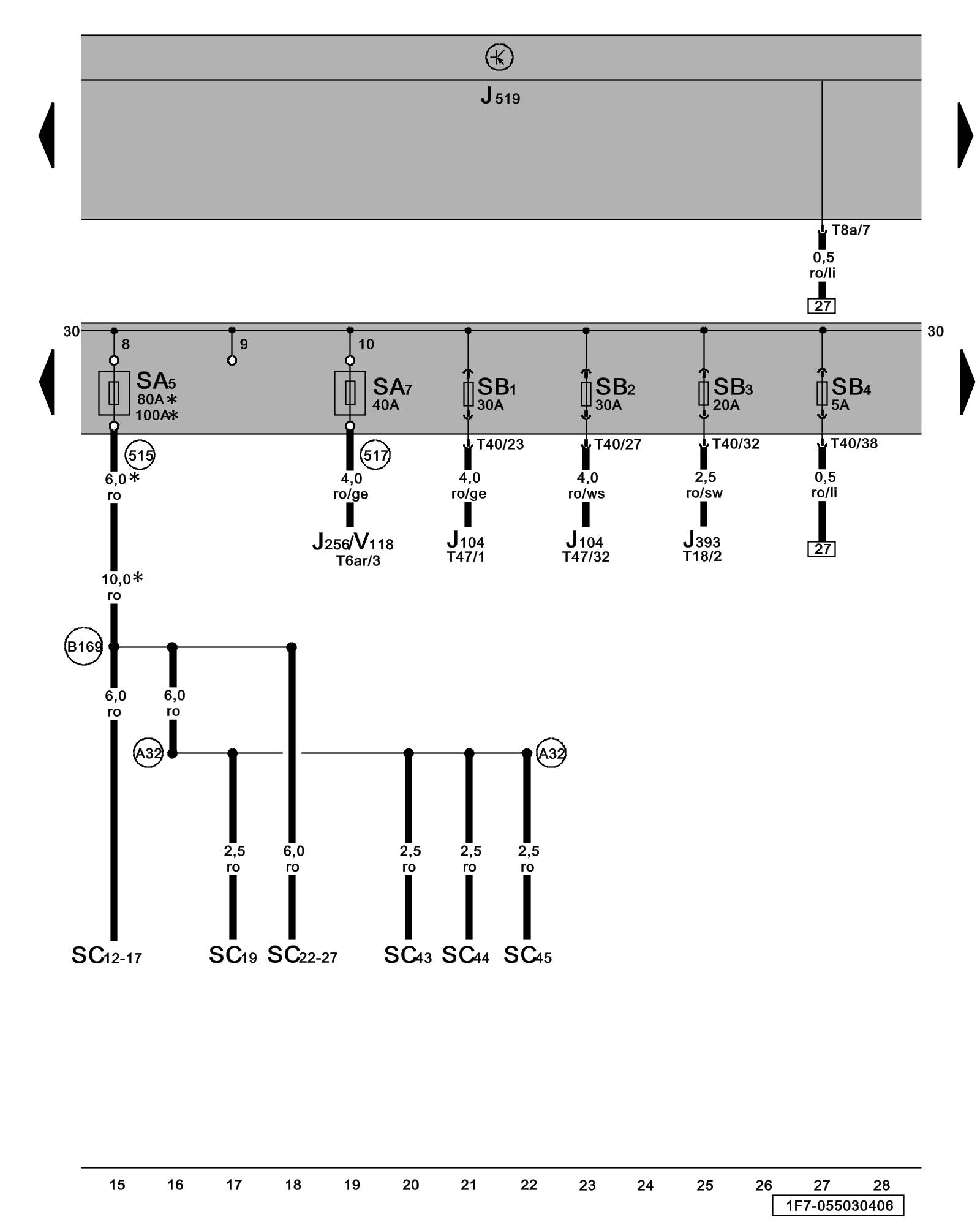

Diagram 55/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SA6, SA7, SB1, SB2, SB3 and SB4





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module Overview of Control Modules

J256 - Convertible Top Control Module Top Convertible System Overview

J393 - Comfort System Central Control Module Overview of Control Modules

J519 - Vehicle Electrical System Control Module Overview of Control Modules

SA5 - Fuse 5 (on fuse panel A) Overview of Fuses

SA7 - Fuse 7 (on fuse panel A) Overview of Fuses

SB1 - Fuse 1 (on fuse panel B) Overview of Fuses

SB2 - Fuse 2 (on fuse panel B) Overview of Fuses

SB3 - Fuse 3 (on fuse panel B) Overview of Fuses

SB4 - Fuse 4 (on fuse panel B) Overview of Fuses

SC12 - Fuse 12 (on fuse panel C) Overview of Fuses

SC17 - Fuse 17 (on fuse panel C) Overview of Fuses

SC19 - Fuse 19 (on fuse panel C) Overview of Fuses

SC22 - Fuse 22 (on fuse panel C) Overview of Fuses

SC27 - Fuse 27 (on fuse panel C) Overview of Fuses

SC43 - Fuse 43 (on fuse panel C) Overview of Fuses

SC44 - Fuse 44 (on fuse panel C) Overview of Fuses

SC45 - Fuse 45 (on fuse panel C) Overview of Fuses

T6ar - 6-Pin Connector

T8a - 8-Pin Connector

T18 - 18-Pin Connector

T40 - 40-Pin Connector, on electronics box

T47 - 47-Pin Connector

V118 - Convertible Top Hydraulic Pump Convertible Top Hydraulic System

(515) - Threaded Connection 5 - terminal 30a (on relay panel)

(517) - Threaded Connection 7 - terminal 30a (on relay panel)

(A32) - Plus Connection (30) (in instrument panel wiring harness)

(B169) - Plus Connection 1 (30) (in interior wiring harness)

* - Where applicable
