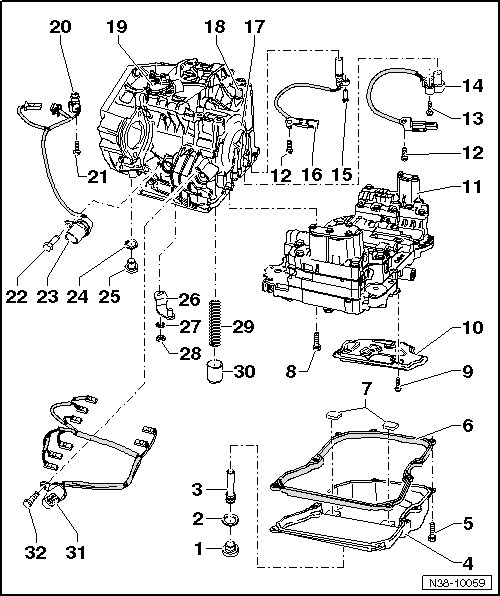

Valve Body Overview

Valve Body Overview






1 Inspection Plug

• Transmission fluid level, checking and filling. Refer to => [ Transmission Fluid Level, Checking and Filling ] Transmission Fluid Level, Checking and Filling.

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

2 Seal

• Always replace.

3 Overflow Tube

• Remove in order to drain the transmission fluid.

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

4 Transmission Fluid Pan

• Removing and installing, refer to => [ Transmission Fluid Pan ] Service and Repair.

5 Bolt

• Tighten the transmission fluid pan bolts diagonally and in several steps.

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

6 Gasket

• With spacers (quantity: 8).

• Check before installing.

• Replace a brittle, cracked or deformed gasket.

7 Magnet

• Quantity: 2; in the depressions in the pan.

• Clean before installing the pan.

8 Bolt

• For securing the valve body to the transmission.

• Quantity 12; with different lengths, refer to => [ Bolt Lengths and Locations on the Valve Body ] Service and Repair.

• Always replace the bolts.

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

9 Bolt

• Quantity: 3

• For securing the transmission fluid filter to the valve body.

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

10 Transmission Fluid Filter

• Removing and installing, refer to => [ Transmission Fluid Filter ] Service and Repair.

11 Valve Body

• Removing and installing, refer to => [ Valve Body ] Service and Repair.

• For the correct allocation, refer to the Parts Catalog.

12 Bolt

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

13 Bolt

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

14 Transmission Input Speed Sensor (G182)

• Removing and installing, refer to => [ Transmission Input Speed Sensor G182 ] Transmission Input Speed Sensor G182.

15 Bolt

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

16 Transmission Output Speed Sensor (G195)

• Removing and Installing, refer to => [ Transmission Output Speed Sensor G195 ] Transmission Output Speed Sensor G195.

17 Transmission Housing

• The transmission fluid cooler is not illustrated

18 Vent Cap

19 Multifunction Transmission Range Switch (F125)

• Removing and installing, refer to => [ Multifunction Transmission Range Switch F125 ] Service and Repair.

• Adjusting, refer to => [ Multifunction Transmission Range Switch, Adjusting ] Adjustments.

20 Transmission Fluid Temperature Sensor (G93)

• Integrated into the wiring harness.

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

• Removing and installing, refer to => [ Solenoid Valve and Sensor Wiring Harness ] Service and Repair.

• Wire routing, refer to => [ Wire Routing, Connectors and Bracket on Valve Body ] Wire Routing, Connectors and Bracket on Valve Body.

21 Bolt

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

22 Bolt

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

23 Sensor Wiring Harness

• With the transmission fluid temperature sensor.

• For the transmission input speed sensor and the transmission output speed sensor.

• Always replace the seal on the connector housing.

• Removing and installing, refer to => [ Solenoid Valve and Sensor Wiring Harness ] Service and Repair.

• Wire routing, refer to => [ Wire Routing, Connectors and Bracket on Valve Body ] Wire Routing, Connectors and Bracket on Valve Body.

• For the correct allocation, refer to the Parts Catalog.

24 Seal

• Always replace.

25 Drain Plug

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

26 Selector Shaft Lever

27 Washer

28 Nut

• Installed position: The centering collar faces the washer => [ (Item 27) Washer ].

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

29 Spring

• For the correct allocation, refer to the Parts Catalog.

30 Piston

31 Solenoid Valve Wiring Harness

• Always replace the seal on the connector housing.

• Removing and installing, refer to => [ Solenoid Valve and Sensor Wiring Harness ] Service and Repair.

• Wire routing, refer to => [ Wire Routing, Connectors and Bracket on Valve Body ] Wire Routing, Connectors and Bracket on Valve Body.

32 Bolt

• Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.
