Upper A-Pillar Trim

Pillar and Side Trim

Upper A-pillar Trim

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

- Remove side instrument panel covers. Refer to => [ Instrument Panel Side Covers ] Service and Repair

- Remove the A-pill center trim. Refer to => [ Center A-pillar Trim ] Center A-Pillar Trim

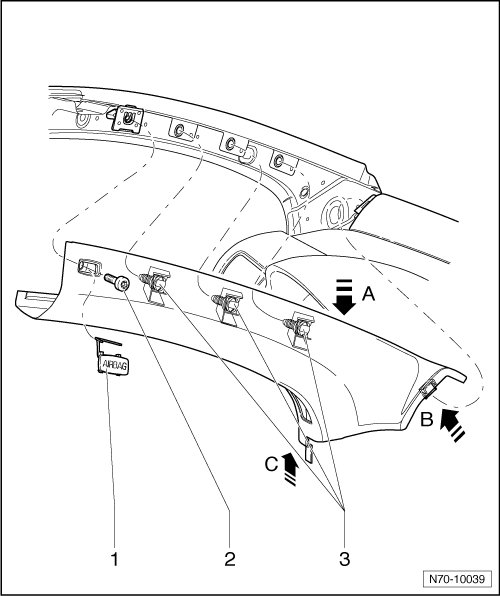

- Remove airbag emblem - 1 - and remove screw - 2 - (4 Nm).

- Remove trim in area of mounting clip - 3 - from mounts - arrow A -.

- Remove trim from door seal piping.

- Pull trim out of front mount - arrow B -.

- Remove trim in rear area from instrument panel - arrow C -.

• When re-installing, airbag emblem - 1 - must be replaced.

• Before installing, inspect the securing clips for damage and replace if necessary.





Installation

- To install, perform the steps used for removal in reverse order.
