Window Frame Trim

Rear Lid Trim Panel, Rabbit from MY 2004

Window Frame Trim

Removal

- Remove rear lid trim. Refer to => [ Rear Lid Trim ] Rear Lid Trim

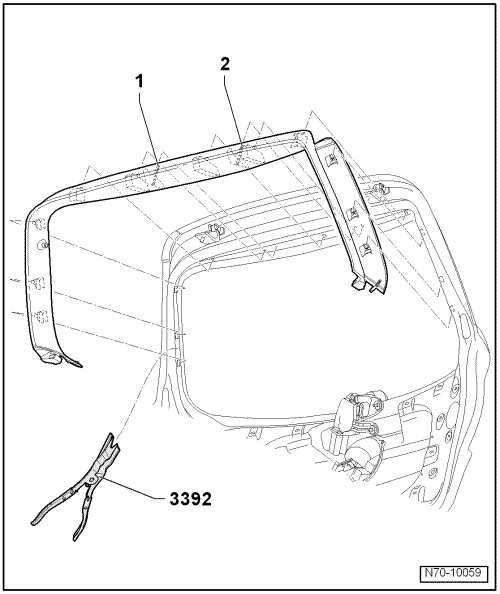

- Using pliers (3392), remove trim at sides from mounts in lid.

- Pull trim on upper edge out of mounts.

- Remove trim in centering pin area - 1 - and - 2 - from mounts in rear lid.





Installation

- To install, perform the steps used for removal in reverse order.

• Before installing, check securing clips for damage and replace if necessary.
