Main Relay (Computer/Fuel System): Locations

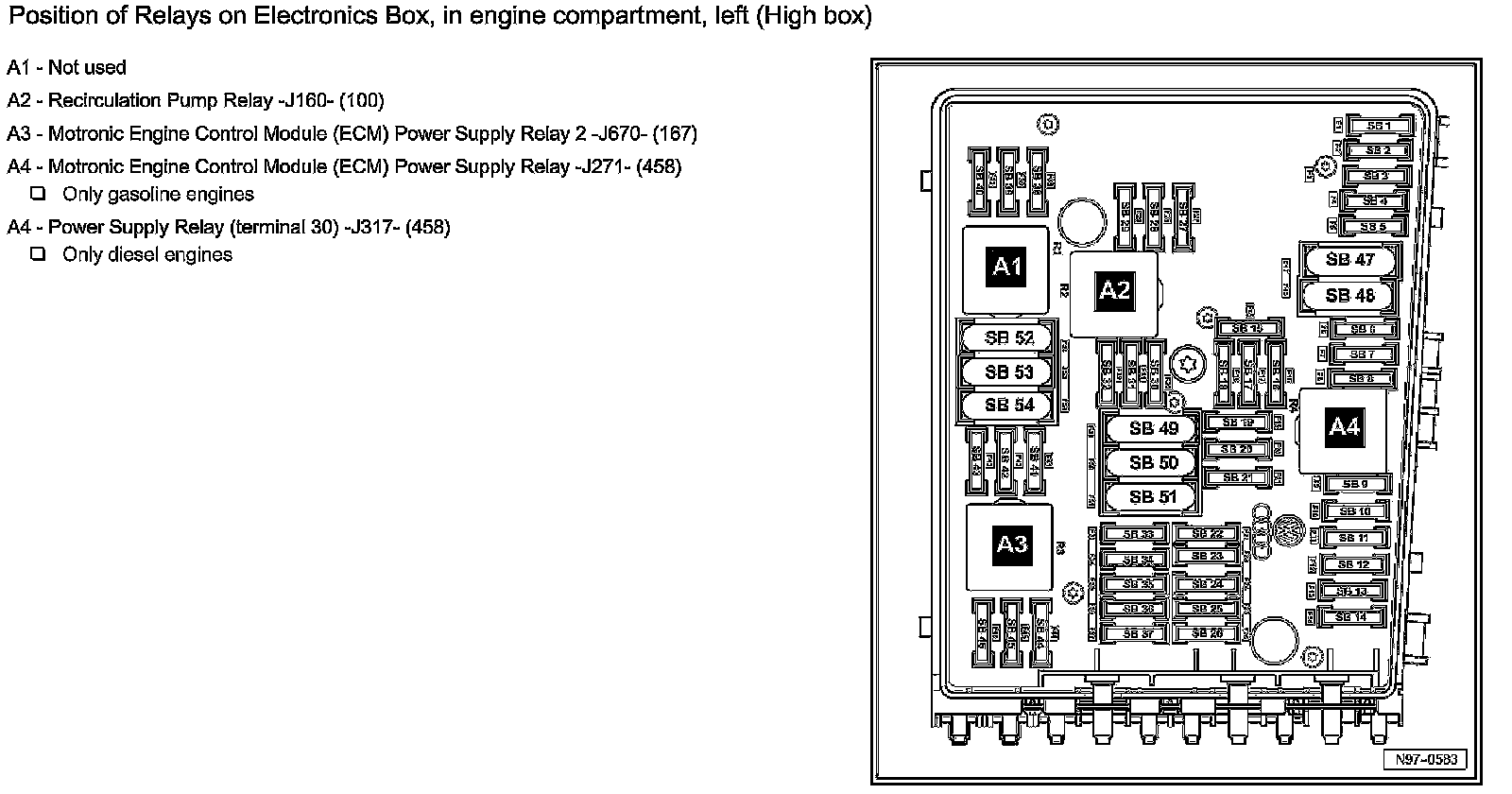

Position Of Relays On Electronics Box, In Engine Compartment, Left (High Box):
